Hiwin HGW30CC Linear Guideway Block
Yeni
Stokta14 ünitelerSevkiyata hazır
98,59$
DOĞRUSAL KILIT BLOĞU Hiwin tarafından 30 mm ray boyutunda ağır yük flanş bloğu, 48,5 kN dinamik ve 71,87 kN statik yük derecelendirmeleri ile hassas hareket kontrolü için tasarlanmış, CNC ve otomasyon sistemleri için ideal.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

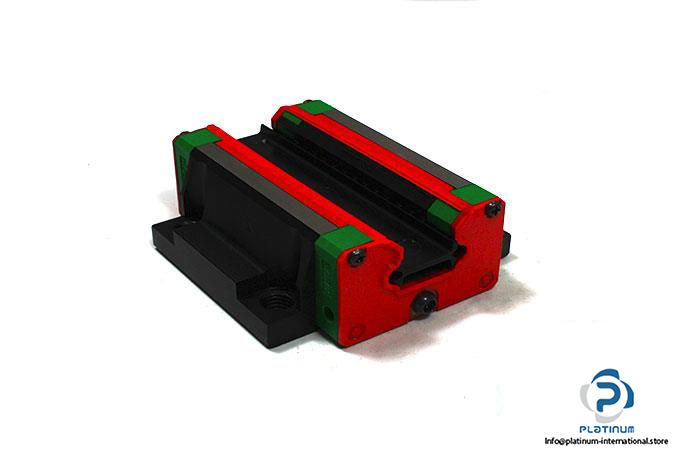

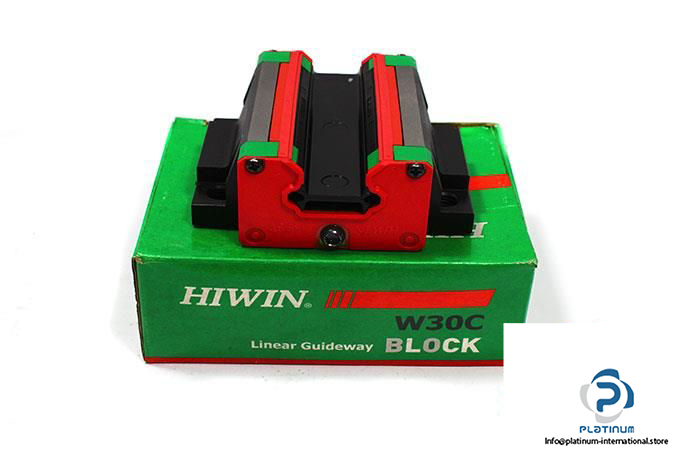

HIWIN HGW30CC LINEAR GUIDEWAY BLOCK
Engineered for high-performance linear motion, this Hiwin flange-type guideway block supports heavy loads and provides high rigidity, making it ideal for demanding automation, CNC, and industrial machinery applications.
Manufacturer: Hiwin
Type: Linear Guideway Block

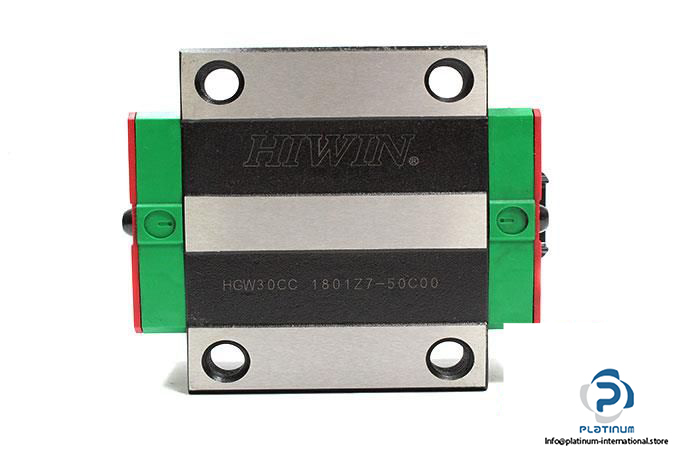

MNR: HGW30CC 1801Z7-50C00
Size: 30 mm
| Block Height | 36 mm |
| System Height | 42 mm |
| Block Width (W) | 90 mm |
| Block Length (L) | 97.4 mm |
| Thread Size | M8 x 25 |
| Hole Distances | 72 mm, 52 mm |
| Rail Width | 28 mm |
| Rail Height | 26 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | Top or Bottom |
| Basic Dynamic Load Rating | 48.5 kN |
| Basic Static Load Rating | 71.87 kN |
