Hiwin HGW35HC Linear Guideway Block
Yeni
Stokta61 ünitelerSevkiyata hazır
155,99$
LINEER REHBER BLOĞU Hiwin HGW 35 HCC flanş tipi lineer rehber bloğu, aşırı ağır yükler için yüksek rijitlik ve hassasiyet sunar, zorlu endüstriyel hareket uygulamaları için uygundur.
35BlockBottomFlangeGuideGuidewayHCCHeavyHGWHiwinIndustrialLinearLoadMotionmountrailSeriesSizeTopType
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

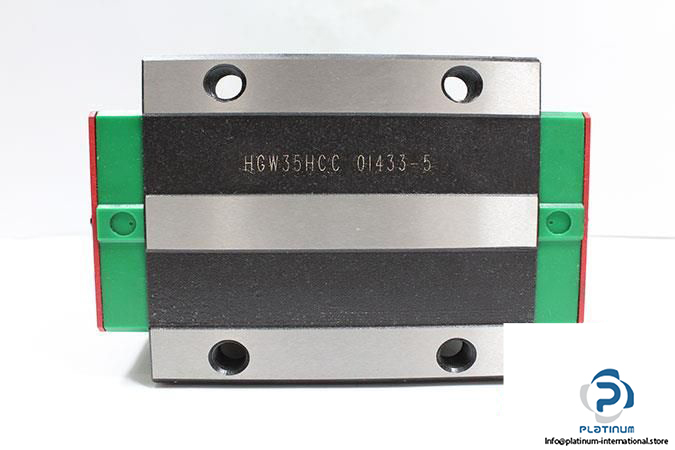

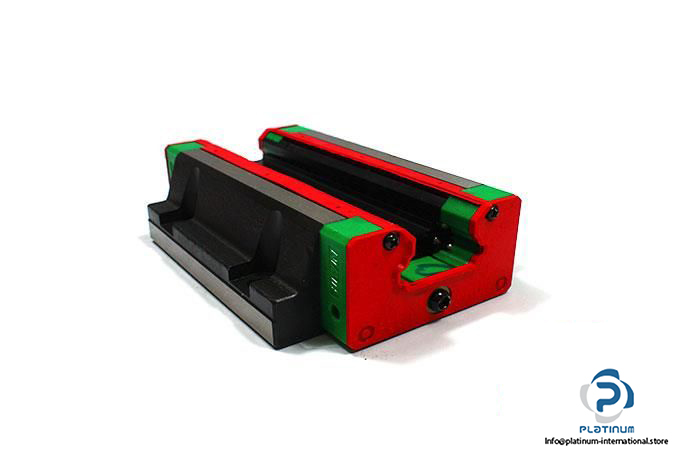

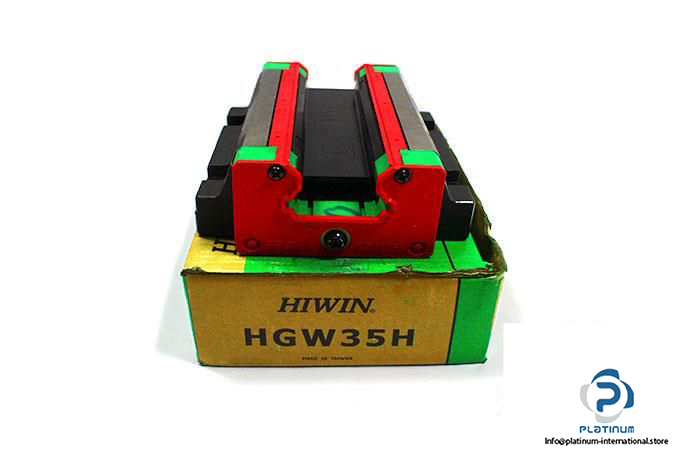

HIWIN HGW 35 HCC LINEAR GUIDEWAY BLOCK
The Hiwin HGW 35 HCC is a super heavy-load linear guideway block designed for high-performance motion systems. Featuring a flange-type structure, top or bottom mounting options, and precise load-bearing capabilities, it is ideal for demanding industrial automation and machine tools.
Manufacturer: Hiwin
Type: Linear Guideway Block HGW
MNR: HGW 35 HCC
Size: 35

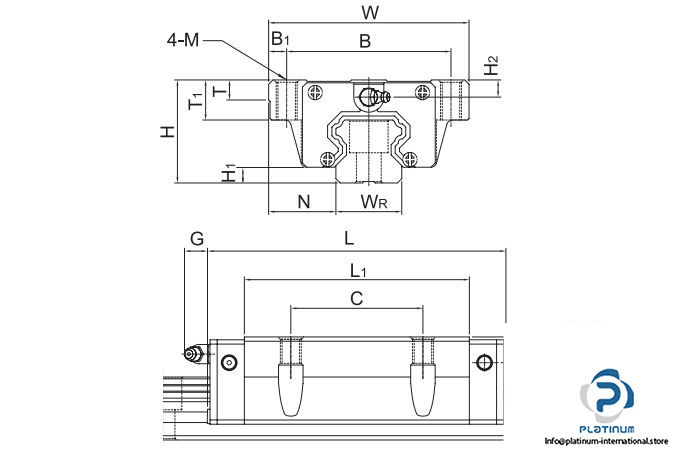

| Total Height H | 48 mm |
| Block Width W | 100 mm |
| Block Length L | 138.2 mm |
| Block Height | 40.5 mm |
| B | 82 mm |
| C | 62 mm |
| Block Type | Flange |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Dynamic Load Rating (C) | 77.9 kN |
| Static Load Rating (C‚) | 122.77 kN |
