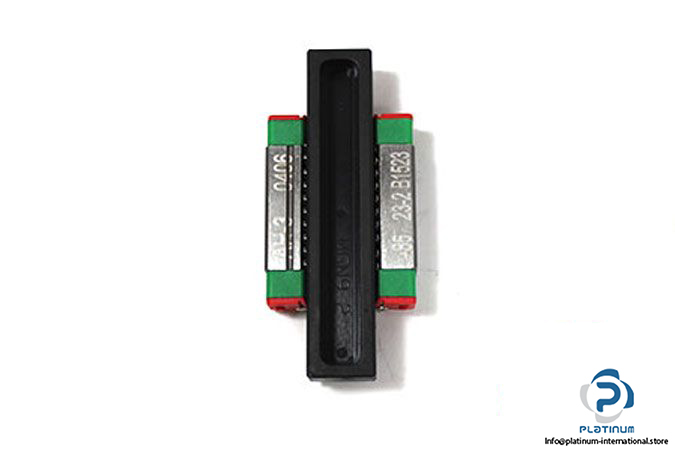

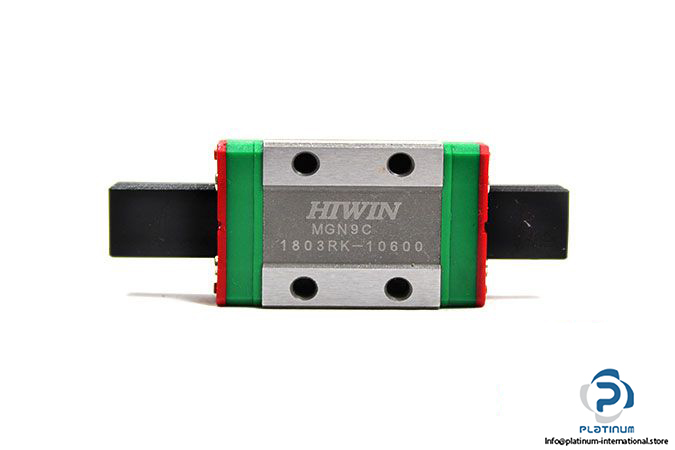

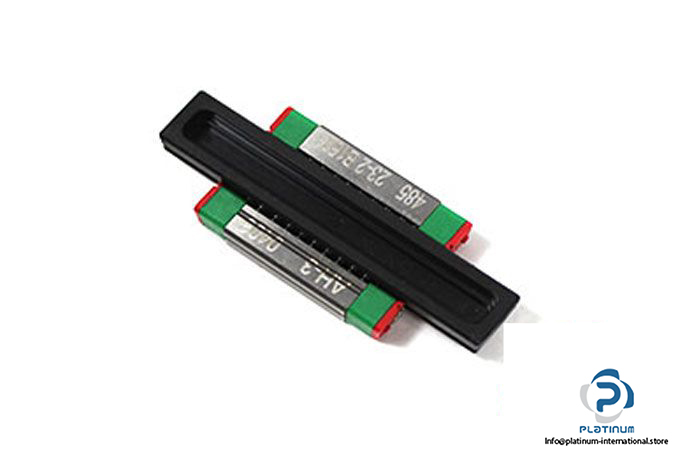

Hiwin MGN9C Linear Guideway Block
Yeni
Stokta20 ünitelerSevkiyata hazır
29,79$
9 mm ray boyutuna ve yüksek yük kapasitelerine sahip kompakt HIWIN MGN9C lineer kızak bloğu, sınırlı alanlı endüstriyel ve otomasyon uygulamalarında hassas hareket için idealdir.
1803RK-106009AutomationBlockCarriageCNCCompactComponentGuideGuidewayHiwinLinearMGNMGN9CmmMotionrailSeries
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
HIWIN MGN9C LINEAR GUIDEWAY BLOCK
The HIWIN MGN9C Linear Guideway Block is designed for high-precision linear motion in compact applications. With a size of 9 mm and standard block form, it delivers smooth movement and high load capacity, making it ideal for automation systems, 3D printers, and CNC machinery.
Manufacturer: HIWIN
Type: LINEAR GUIDEWAY BLOCK
MNR: MGN9C 1803RK-10600
| Size | 9 mm |
| Block Type | Standard |
| Block Height | 8 mm |
| System Height | 10 mm |
| Block Width | 20 mm |
| Block Length | 28.9 mm |
| Distance Between Holes | 15 mm, 10 mm |
| Thread Size | M3 × 8 |
| Rail Width | 9 mm |
| Rail Height | 6.5 mm |
| Basic Dynamic Load Rating | 1.86 kN |
| Basic Static Load Rating | 2.55 kN |
