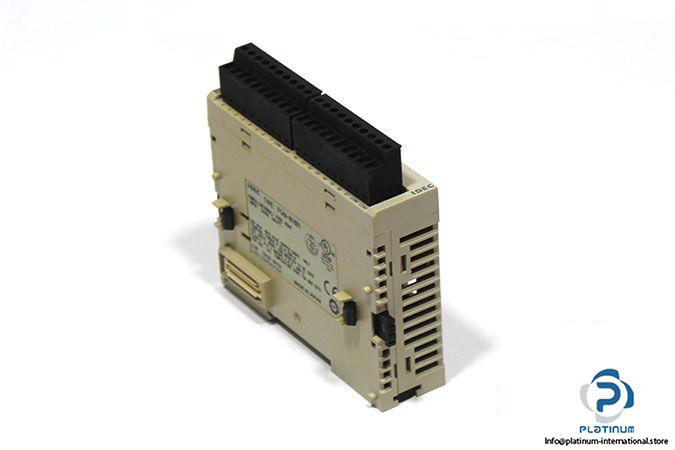

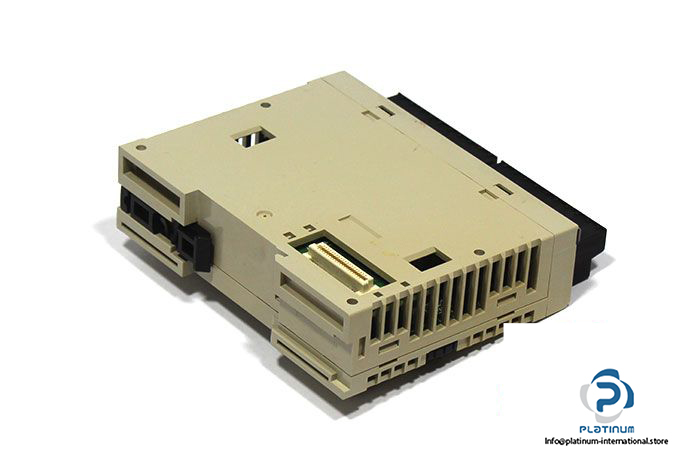

Idec FC4A-N16B1 Input Module

Manufacturer: Idec

Type: Input Module

Model: FC4A-N16B1

Rated Input Voltage: 24 VDC

Input Voltage Range: 20.4 to 28.8V DC

Input Points: 16 Points

Rated Input Current: 7 mA/point (24V DC)

Input Impedance: 3.4 kΩ

ON Voltage: 15V minimum

OFF Voltage: 5V maximum

ON Current: 4.2 mA minimum (at 15V DC)

OFF Current: 1.2 mA maximum

Turn ON Time: 4 ms

Turn OFF Time: 4 ms

Internal Power Consumption: 0.27 W

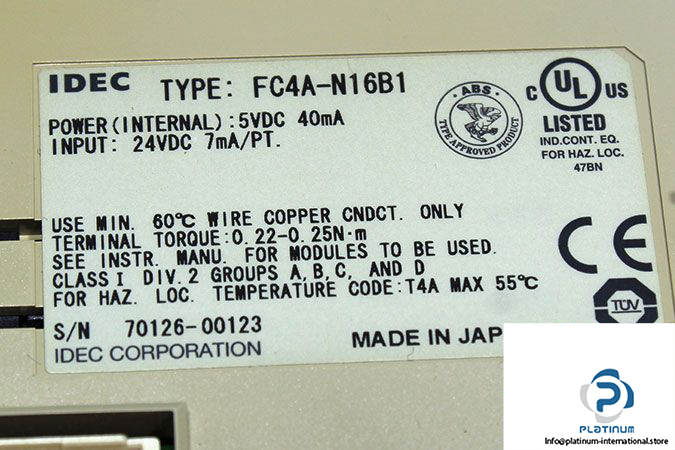

Terminal Torque: 0.22…0.25 Nm

Max. Temperature: 55 °C

Class: I DIV.2

Groups: A,B,C,D

Weight: 100 g
