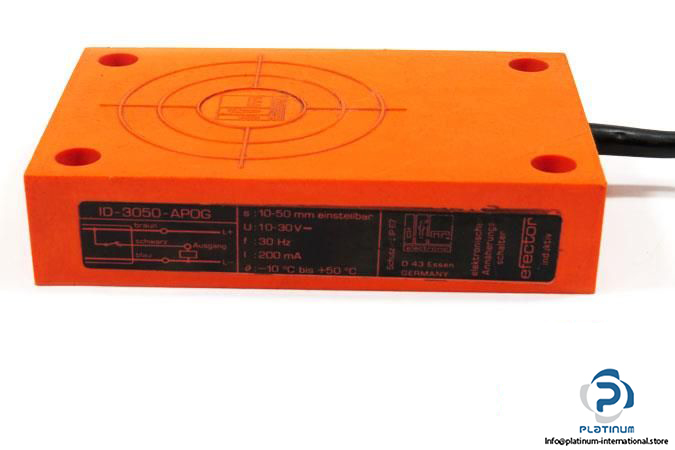

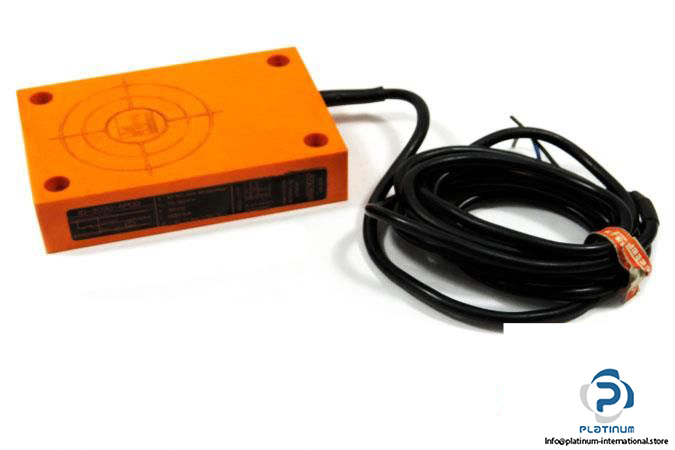

IFM ID-3050-APOG Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: ID5002 ID-3050-APOG

Sensing Range: 10…50 mm

Operating Distance: 0 … 40.5 mm

Operating Voltage: 10…30 V DC

Voltage Drop max.: V DC

Switching output current: 200 mA DC

Switching frequency: 30 Hz

Electrical Design: PNP

Output Function: Normal closed

Connection type, Length: PVC cable 2 m

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -10…50 °C

Material: PPE modified

Dimensions: 120 x 80 x 30 mm

Mounting: Non-flush mountable
