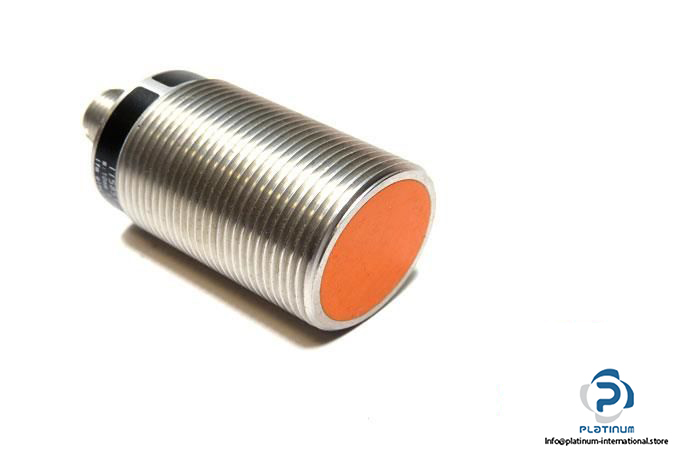

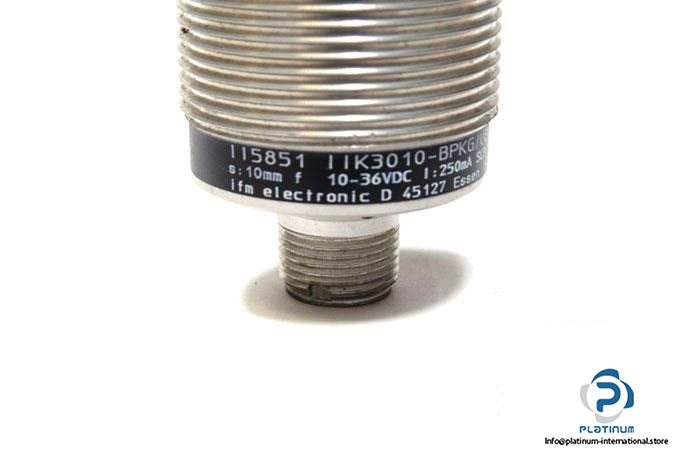

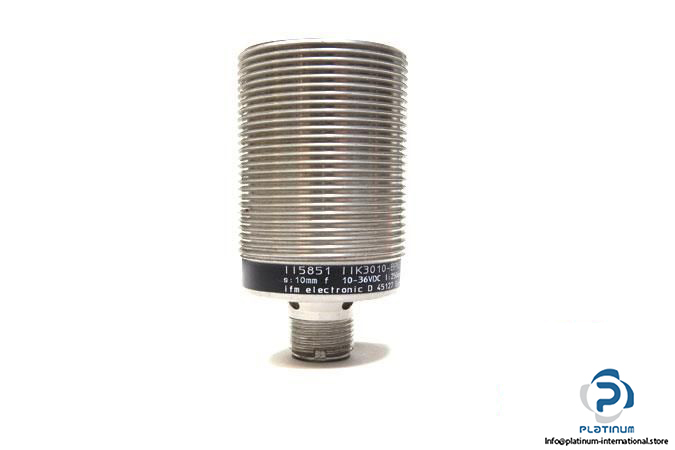

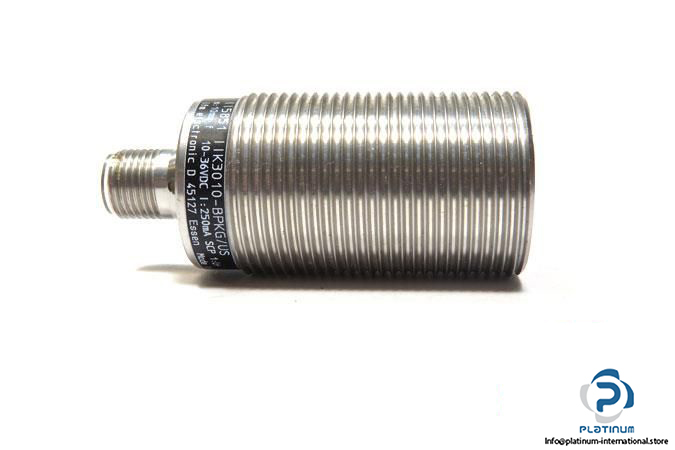

IFM II5851 IIK3010-BPKG/US Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5851

MRN: IIK3010-BPKG/US

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Current consumption max.: 10 mA DC

Switching frequency: 400 Hz

Electrical design: PNP

Output Function: Normally open

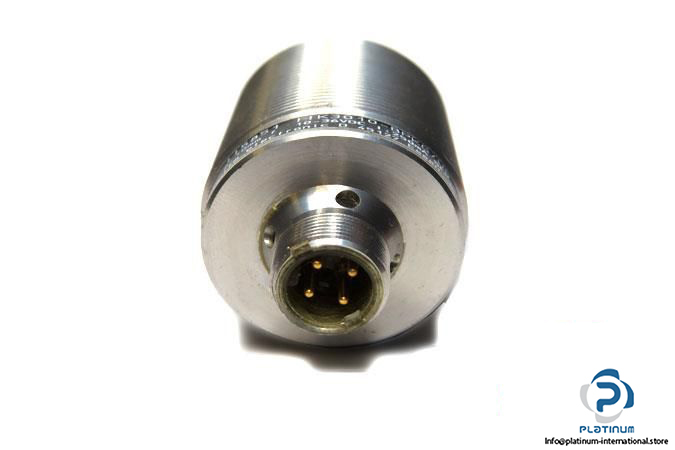

Connector type: M12 Connector, gold plated contacts

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 30,60 mm

Material: Brass white bronze coated; sensing face: PBT orange

Mounting: Flush mountable

Weight: 115.8 g

Condition: New
