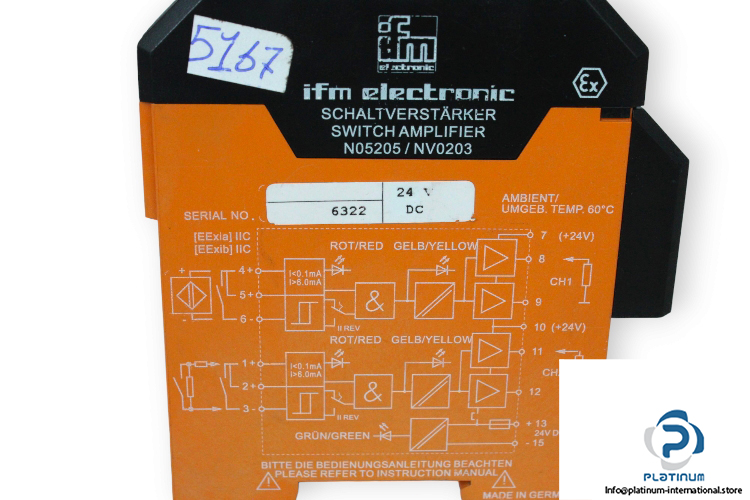

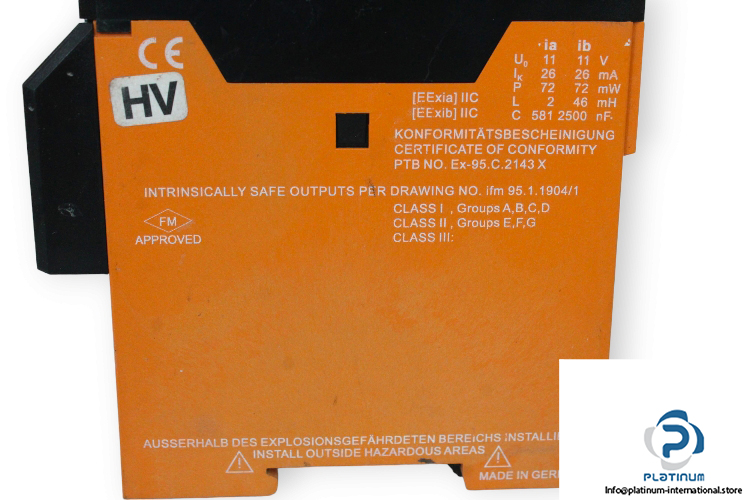

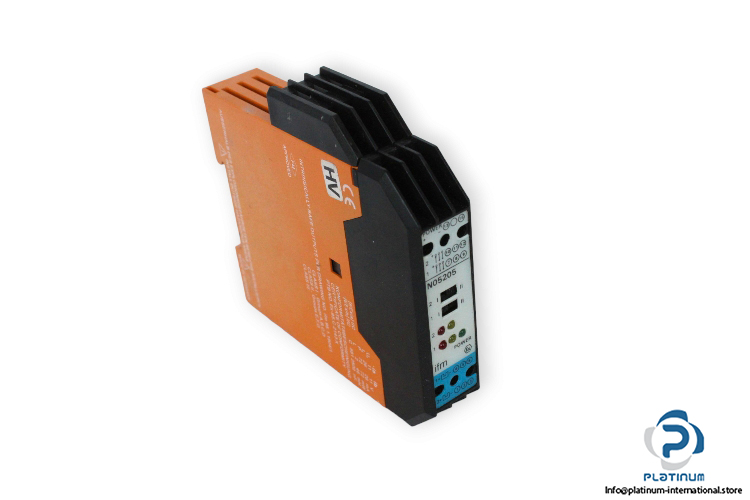

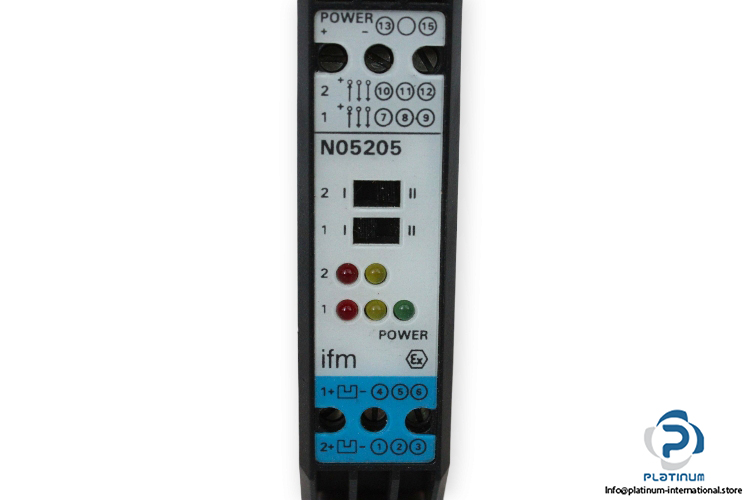

IFM N05205 Switch Amplifier

Manufacturer: IFM
Type: Switch Amplifier for Namur Sensor
Model: N 05205

Supply Voltage: 24 V DC
Application: short-circuit monitoring; Wire monitoring
Operating Voltage: 20…30 V DC
Voltage: 11 V
Current: 26 mA
Power: 72 mW
No. of Channels: 2
inductance: 2 mH (ia)/ 46 mH (ib)
Capacitance: 581 nF (ia)/ 2500 nF (ib)
Operating Temperature: -20 … 60 °C
Connection: Terminals
Protection Type: Explosion Proof
Degree of protection: IP30/ IP20 Terminal
Housing: Housing for DIN Rail Mounting
Dimensions: 102 X 22 X 107 mm
IFM 95.1.1904/1
