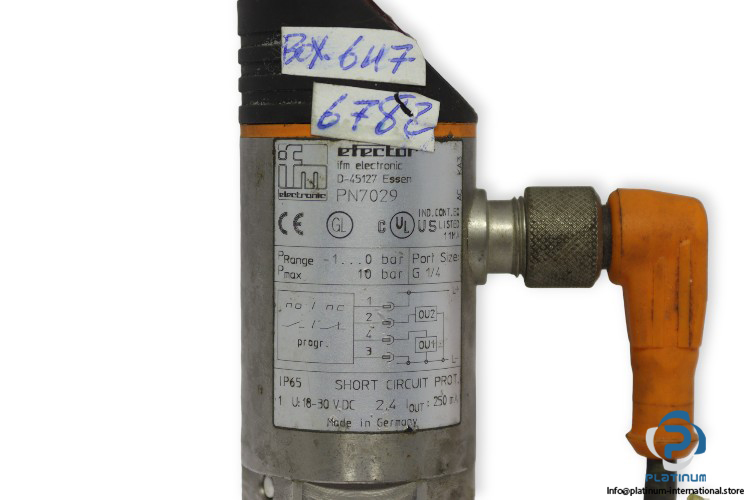

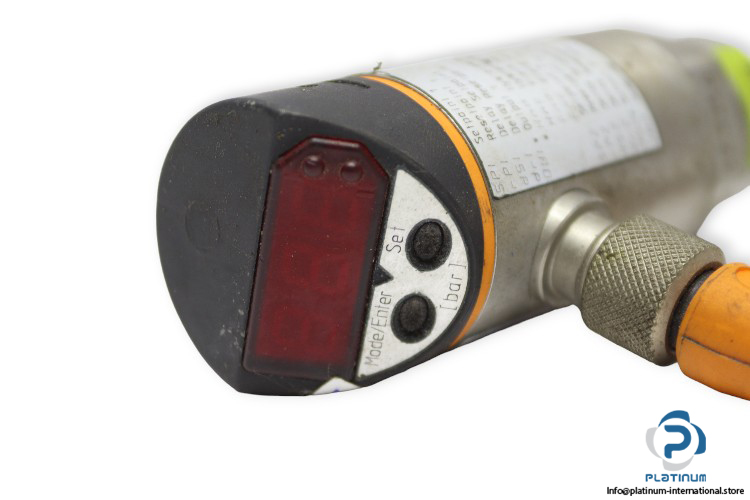

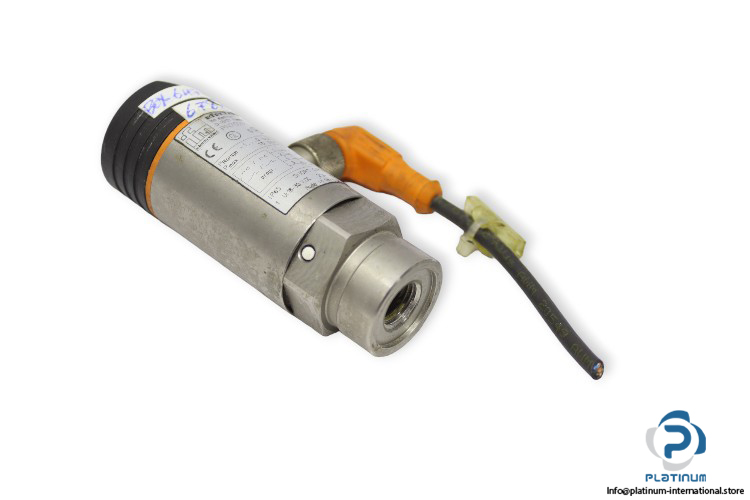

IFM PN7029 Pressure Sensor

Manufacturer: IFM
Type: Pressure sensor
Model: PN7029

Number of digital outputs: 2
Output signal: switching signal
Electrical design: PNP
Output function: normally open / normally closed
Max. voltage drop switching output: 2 DC [V]
Permanent current rating of switching output: 250 DC [mA]
Measuring range: -1 … 0 bar
Process connection: threaded connection G ¼
Media: liquids and gases
Medium temperature: -25…80 °C
Min. bursting pressure: 30 bar
Pressure rating: 10 bar
Type of pressure: relative pressure
Operating voltage: 20…30 DC V
Current consumption: 60 mA
Min. insulation resistance: 100; (500 V DC) [MΩ]
Protection class: III
Power-on delay time: 0.2 s
Connection: 1/4″
