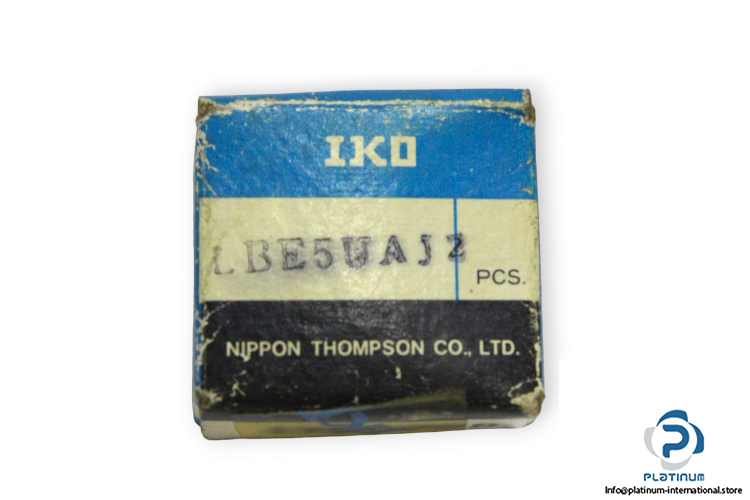

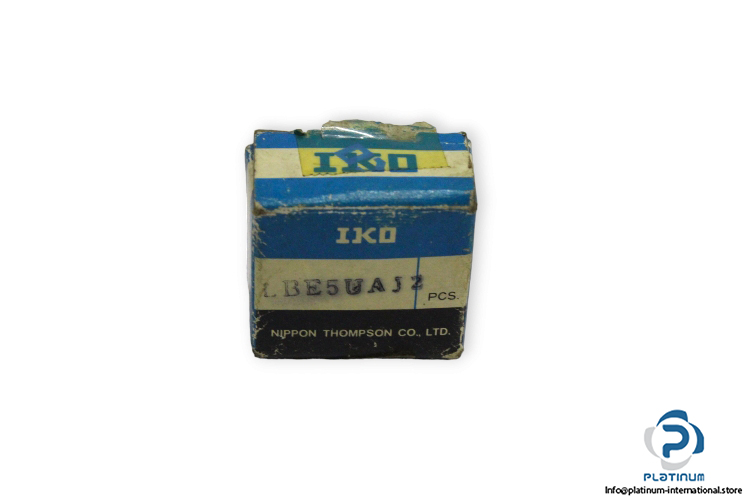

IKO LBE5UAJ Linear Ball Bushing
Manufacturer: IKO
Type: Linear Ball Bushing
Model: LBE 5UA J
Dimensions
Bore Diameter d: 5 mm
Outer diameter D: 12 mm
Length: 22 mm
Ball circuits: 3
Basic Dynamic Load Rating C:
Load direction A: 90,6 N
Load direction B: 73,6 N
Basic Staic Load Rating C0:
Load direction A: 213 N
Load direction B: 213 N
Design type: Adjustable clearance
Sealing: U, seals on one sides
Item per Set: 2
