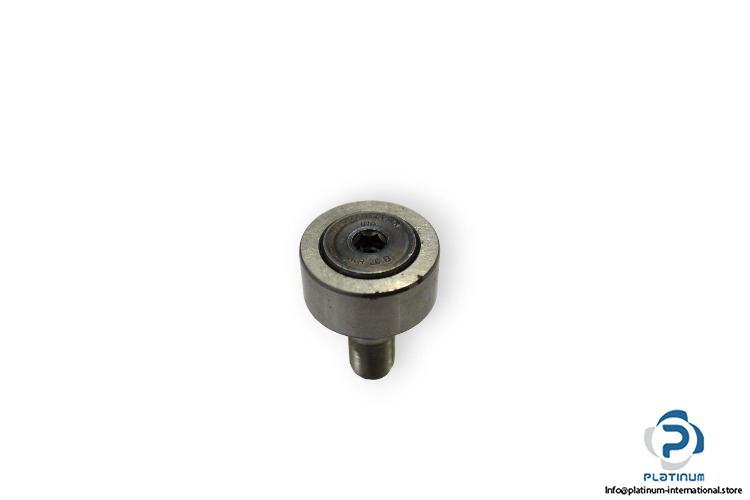

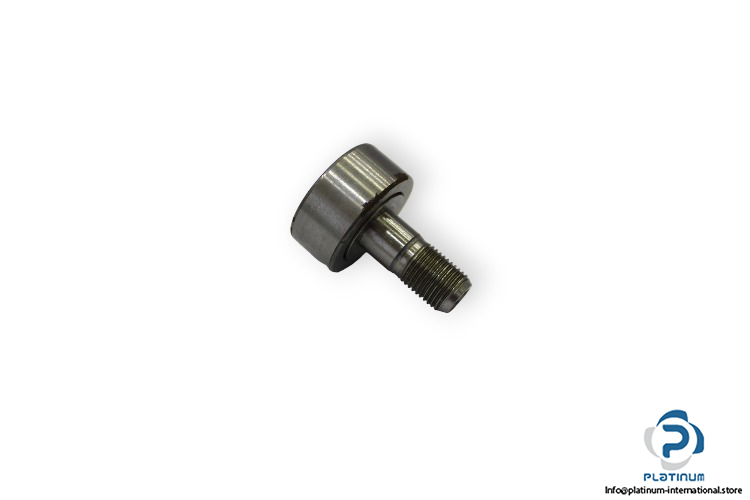

INA KR 26 B Stud Type Track Roller

Manufacturer: INA
Type: Stud type track roller
Model: KR 26 B

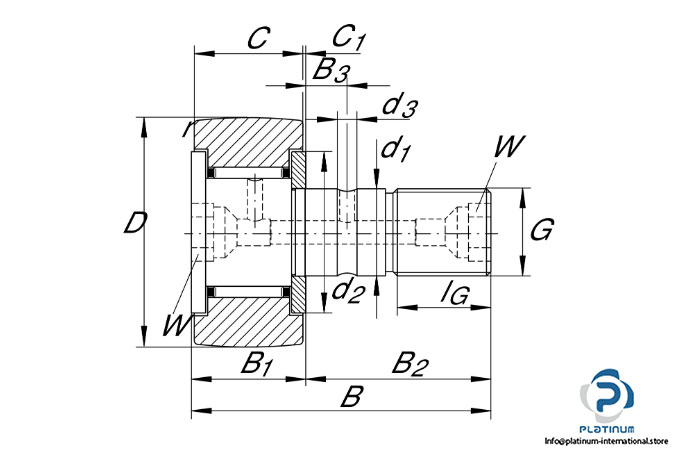

Dimensions:
Outside diameter D: 26 mm
Fit diameter of roller stud d₁: 10 mm
Width of the roller stud B: 36 mm
Roller Width B₁: 13.2 mm
Thread G: M10X1
Thread length: 12 mm
Basic load ratings, radial:
Dynamic C_{r w}: 5100 N
Static C_{0r w}: 6500 N
Fatigue load limit C_{ur w}: 860 N
Speed on permanent grease lubrication: 8000 rpm
Sealing: Gap-type Seal on both sides
