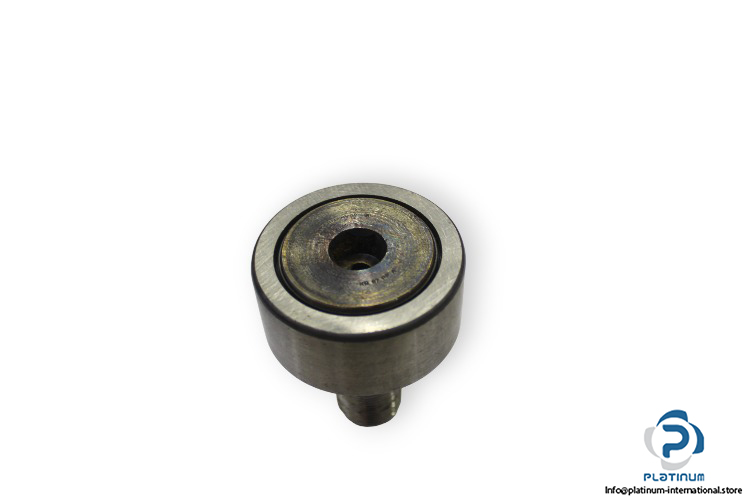

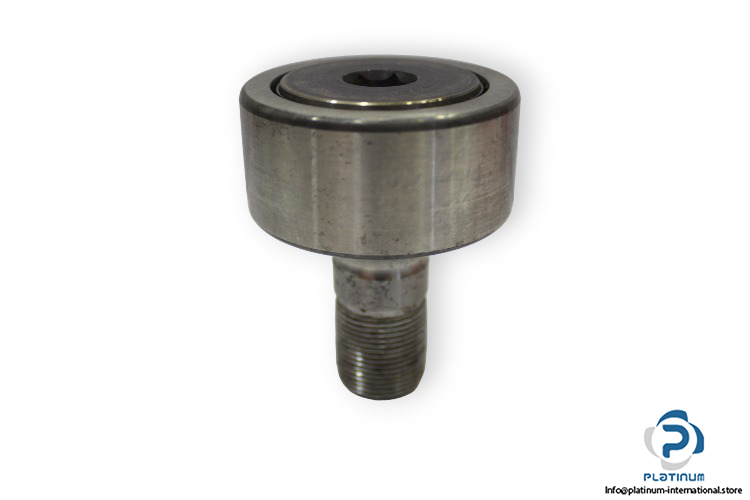

INA KR 62 PP A Stud Type Track Roller

Manufacturer: INA
Type: Stud type track roller
Model: KR62PPA

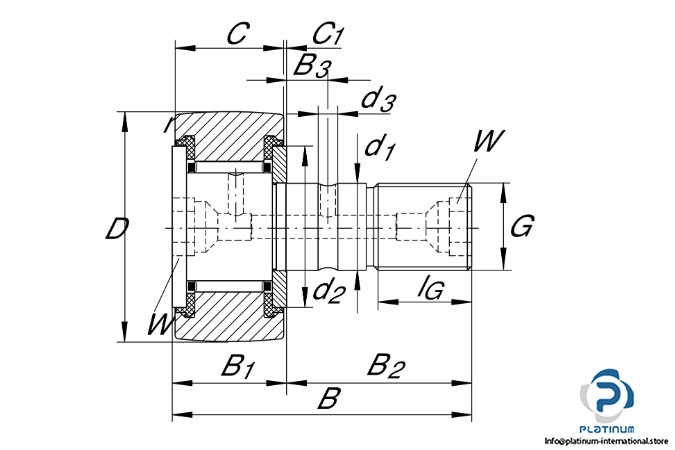

Dimensions:
Outside diameter D: 62 mm
Fit diameter of roller stud d₁: 24 mm
Width of the roller stud B: 80 mm
Maximum width of thrust washer B₁: 30.6 mm
Thread G: M24X1.5
Thread length: 25 mm
Basic load ratings, radial:
Dynamic C_{r w}: 26000 N
Static C_{0r w}: 48500 N
Fatigue load limit C_{ur w}: 7000 N
Speed on permanent grease lubrication: 1900 rpm
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
