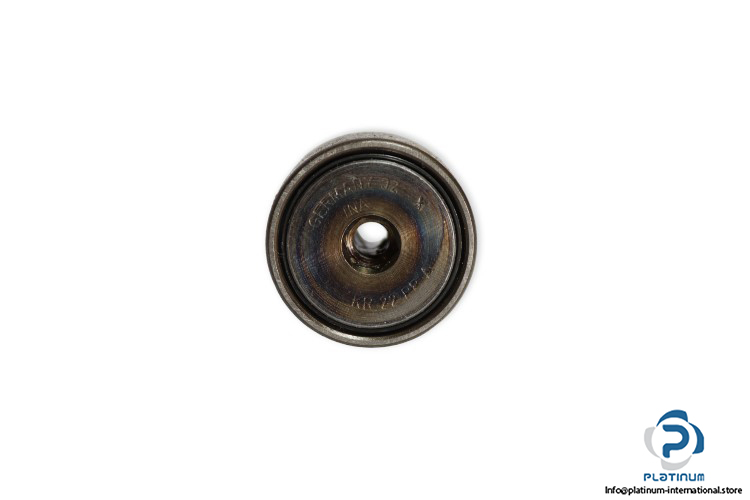

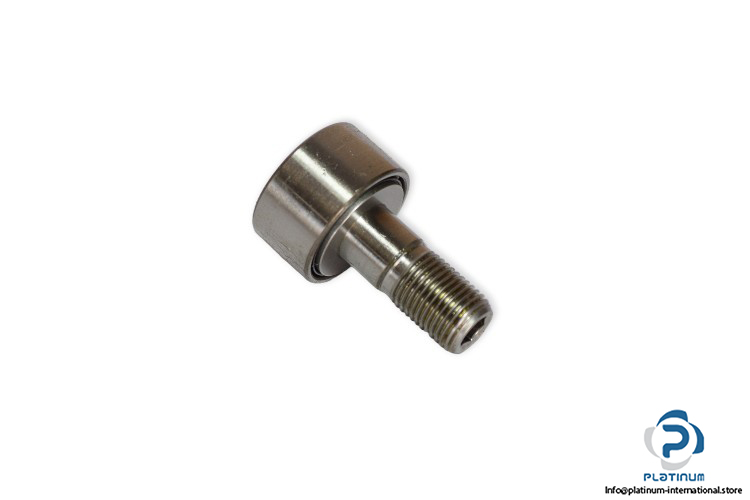

INA KR22-PP-A Stud Type Track Roller

Manufacturer: INA
Type: Stud type track roller with axial guidance
Model: KR22 PPA

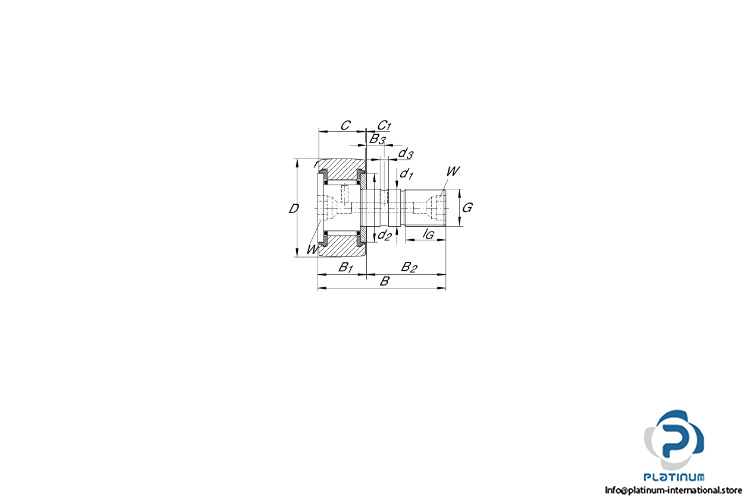

Dimensions:
Outside diameter D: 22 mm
Fit diameter of roller stud d₁: 10 mm
Width of the roller stud B: 36 mm
Roller Width B₁: 13.2 mm
Thread G: M10X1
Thread length: 12 mm
Basic load ratings, radial:
Dynamic C_{r w}: 4500 N
Static C_{0r w}: 5400 N
Fatigue load limit C_{ur w}: 740 N
Speed on permanent grease lubrication: 8000 rpm
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
