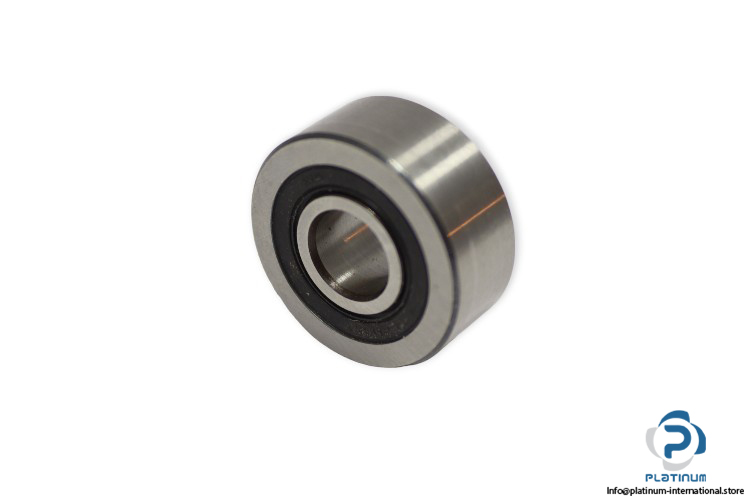

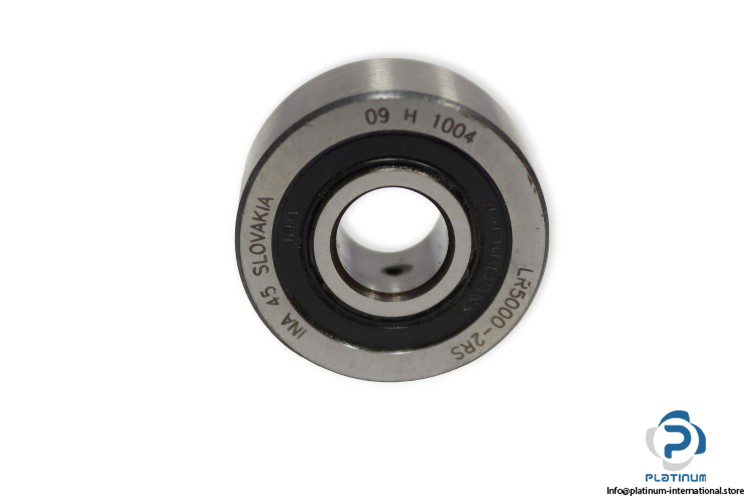

INA LR5000-2RS Track Roller

Manufacturer: INA Schaeffler
Type: Track Roller
Model: LR5000-2RS
Replaces: LR 5000 NPPU

Dimensions
Bore Diameter d: 10 mm
Outer diameter D: 28 mm
Height of the bearing H: 12 mm
Basic dynamic load rating, radial: 4.800 N
Basic static load rating, radial: 2.950 N
Fatigue load limit, radial: 149 N
Speed on permanent grease lubrication: 9.000 1/min
Permissible dynamic load outer ring, radial: 2.950 N
Sealing: Lip seal on both sides, with axial sealing action
Suffix R500: Outer Ring profile R500
