Indramat HZF01.1-W045N Filter Module

Indramat Filter Module HZF011W045N with Moeller Motor-Protective Circuit-Breaker PKZM06.3

Manufacturer: Indramat

Type: Filter Module

Model: HZF011W045N

Part No.: R911286617

Family: Diax 04

The Indramat Filter Module HZF011W045N is a high-quality filter module designed for industrial applications requiring stable and efficient power management. As part of the Diax 04 family, this module ensures smooth operation in systems operating within 400 to 480 V AC-3P voltage ranges. With natural convection cooling, the filter module is engineered for reliable performance even under demanding conditions.

Technical Specifications:

• Max. Line Voltage: 400 to 480 V AC-3P
• Line Current: 80 A
• Frequency: 50/60 Hz
• Nominal Power: 45 kW
• Cooling Mode: Natural Convection
• Dimensions: 498 x 262 x 175 mm

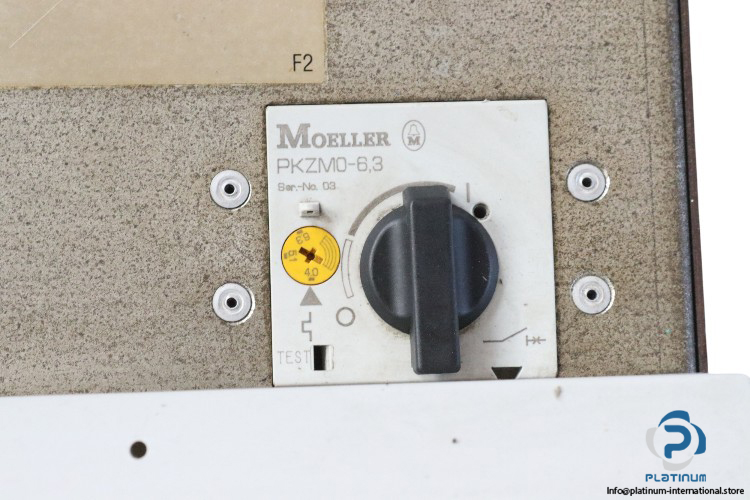

The filter module is equipped with a Moeller PKZM0-6.3 Motor-Protective Circuit-Breaker for enhanced safety and protection.

Attachment Details:

• Manufacturer: Moeller
• Type: Motor-Protective Circuit-Breaker
• Model: PKZM06.3

This combination of a high-performance filter module and a reliable motor-protective circuit-breaker makes it an ideal solution for managing and protecting industrial systems efficiently.
