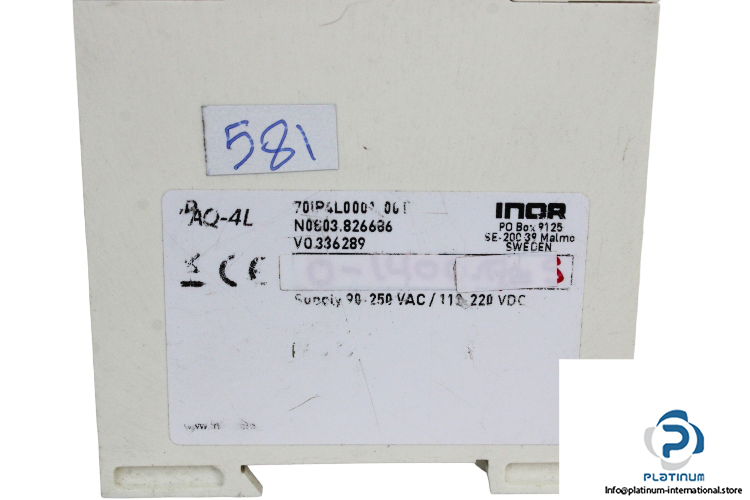

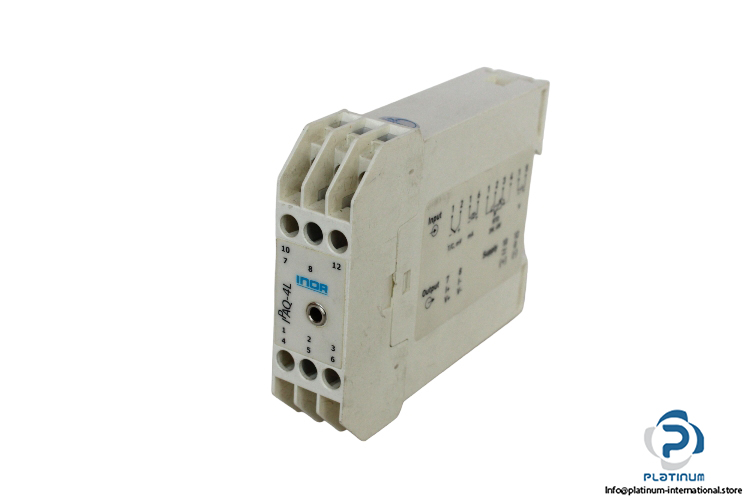

Inor IPAQ-4L Temperature Transmitter

Manufacturer: Inor

Type: Temperature Transmitter

Model: IPAQ-4L

Supply voltage: 90 … 250 V AC/110 … 220 V DC

Selectable damping time: ~2s

Power consumption: <1.5 W
Output Current, voltage:  4 … 20 mA; 0 … 10 V

Type Of Signal Converter: Digital

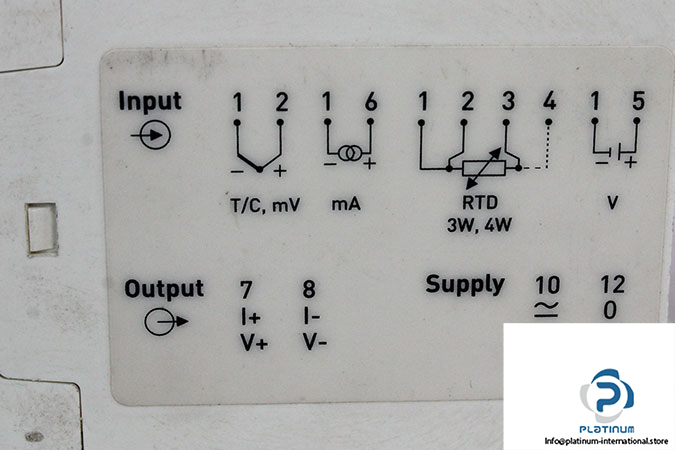

Sensor connection: 3-, 4-wire connection

Entry rtd: Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10

Mounting: Rail acc. to DIN EN 50022, 35 mm, and wall (brackets)

Operation temperature: -20 … +70 °C

Material: PC + ABS

Protection degree: IP 40

Dimensions: 99 x 90 x 22.5 mm
