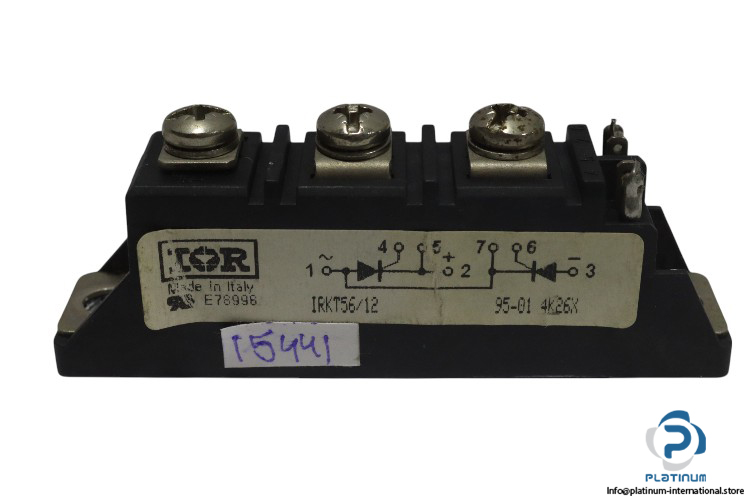

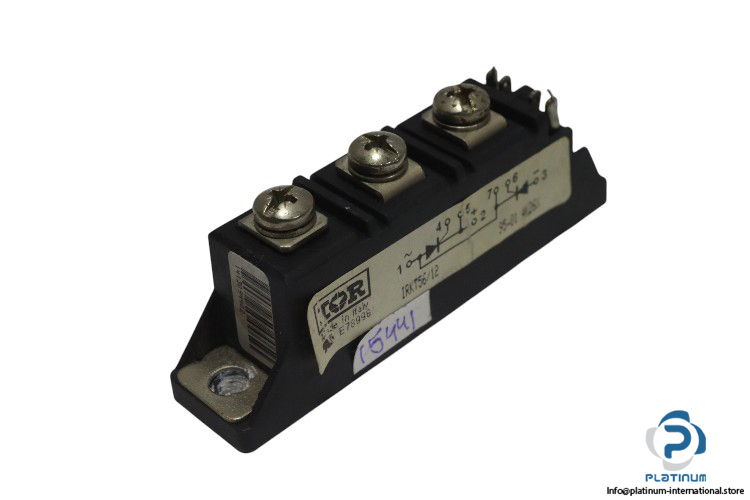

IOR IRKT56/12 Thyristor Module

IOR IRKT56/12 Thyristor Module

The IOR IRKT56/12 Thyristor Module is a high-performance semiconductor component engineered for power control and switching in industrial systems. With a maximum average on-state current of 60 A and peak surge capability up to 1370 A, it provides robust performance under demanding electrical loads. This module is ideally suited for AC switching, rectifier circuits, and motor control applications. Designed to operate reliably in harsh conditions, it supports a wide temperature range from -40°C to 125°C, making it suitable for various high-power environments.

• Manufacturer: IOR
• Type: Thyristor Module
• Model: IRKT56/12

Technical Specifications:

• Max. Average On-State Current: 60 A
• Max. Continuous RMS On-State Current (as AC Switch): 135 A
• Max. Peak, One Cycle Current: 1310 A
• Max. Forward Current: 1370 A
• Temperature Range: -40°C to +125°C

Applications:

• AC power switching
• Motor control systems
• Industrial rectifiers
• High-power electrical equipment
