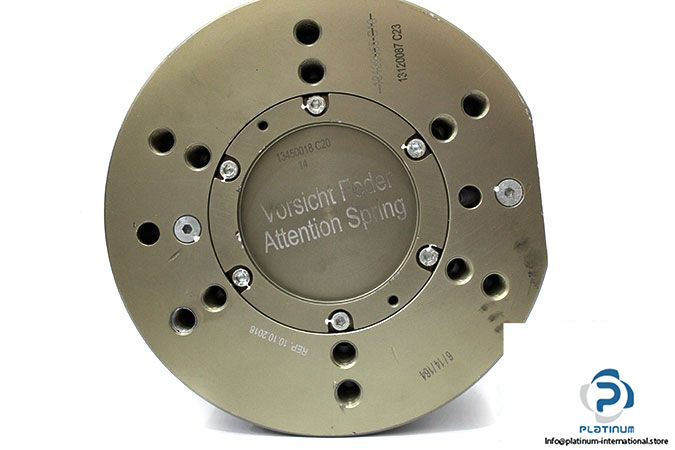

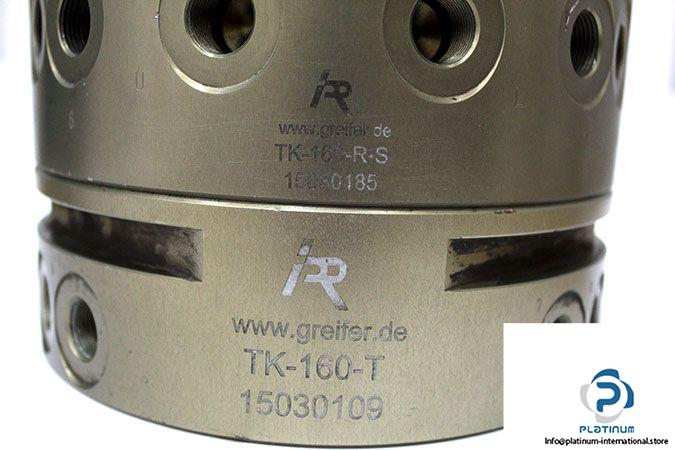

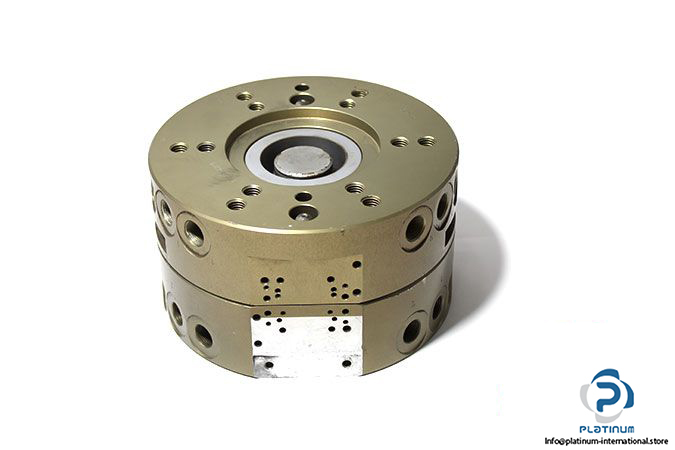

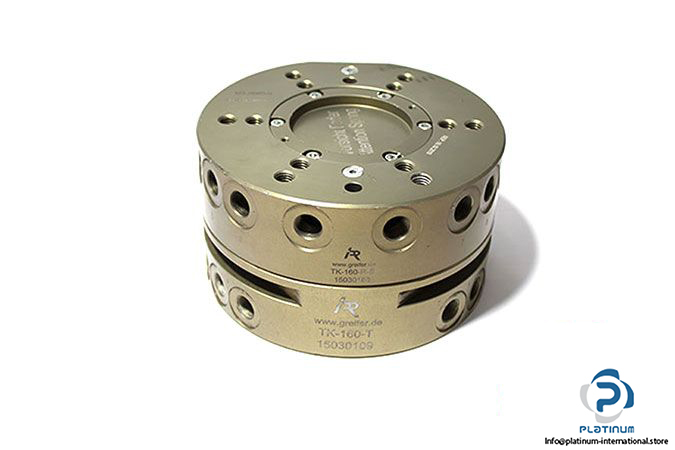

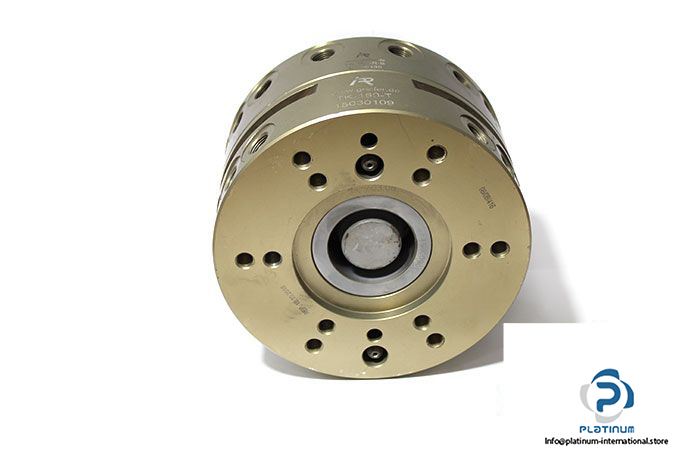

IPR TK-160-T Tool Changer Robot Side

Manufacturer: INTELLIGNTE PERIPHERIEN FUR ROBOTER(IPR)

Type: Tool Changer Robot Side

Model: TK-160-T

Part No.: 15030109

Attachment: Tool Side

Drive: Pneumatic

Adaption Flange / Pitch Circle Diameter: ISO 160

Recommended handling weight: 250 kg

Max. Distance to center of mass: 500 mm

Max. tensile force F_Z: 35,500 N

Max. moment M_x, M_y: 5,500 Nm

Max. moment M_z : 3,750 Nm

Max. compressive force F_d: 70,000 N

Joining force in joining direction: 110 N

Operating Pressure: 4.5 …. 8 bar

Weight: 4.5 kg

Max. permissible offset while locking: 3 mm

Connection thread pneumatic feedthrough: 3/8 G

ambient temperature: 5 …. 80 ^oC

Attachment: IPR TK-160-R-S TOOL CHANGER ROBOT SIDE

Manufacturer: INTELLIGNTE PERIPHERIEN FUR ROBOTER(IPR)

Type: Tool Changer Robot Side

Model: TK-160-R-S

Part No.: 15030185

Drive: Pneumatic

Adaption Flange / Pitch Circle Diameter: ISO 160

Recommended handling weight: 250 kg

Max. Distance to center of mass: 500 mm

Max. tensile force F_Z: 35,500 N

Max. moment M_x, M_y: 5,500 Nm

Max. moment M_z : 3,750 Nm

Max. compressive force F_d: 70,000 N

Joining force in joining direction: 110 N

Operating Pressure: 4.5 …. 8 bar

Weight: 4.5 kg

Max. permissible offset while locking: 3 mm

Connection thread pneumatic feedthrough: 3/8 G

ambient temperature: 5 …. 80 ^oC

Total Weight: 9.0 kg
