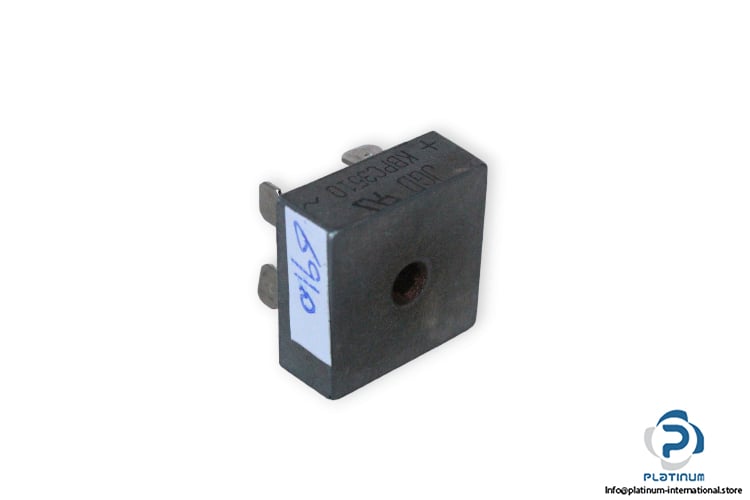

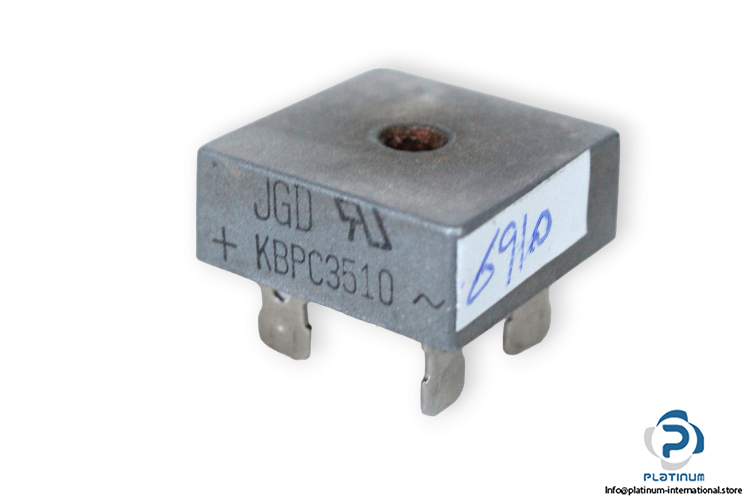

JGD KBPC3510 Bridge Rectifier

Manufacturer: JGD
Type: Passivated Bridge Rectifier
Model: KBPC3510

Maximum Recurrent Peak Reverse Voltage: 1000 V
Maximum RMS Bridge Input Voltage: 700 V
Max. Average Forward Rectified current: 35 A
Peak Forward Surge Current: 400 A
Maximum Instantaneous Forward Voltage: 1.10 (17.5 A)
Operating Temperature: -55 … 150 °C
Dimensions: 47.6 X 28.7 X 28.7 mm
