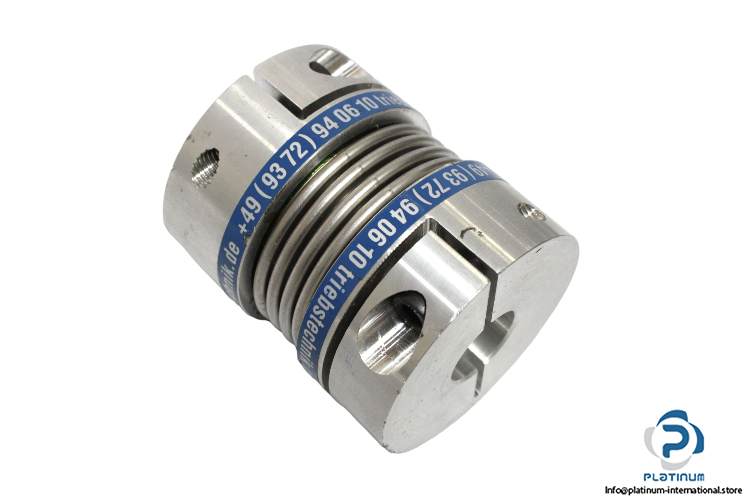

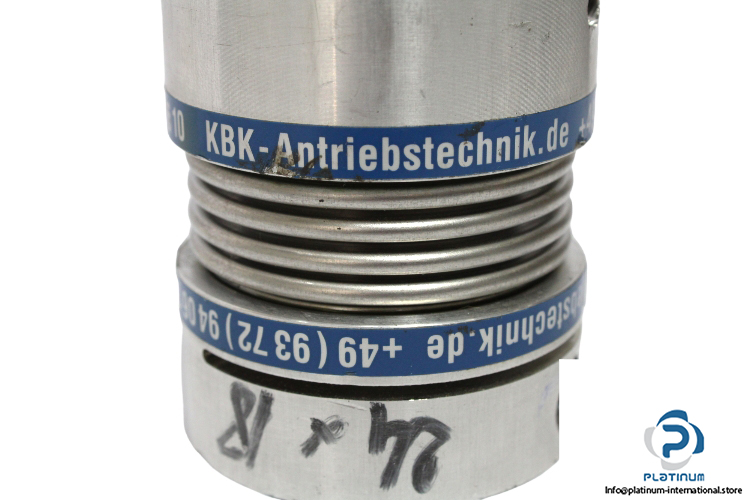

Name: KBK KB4C/30-18-24 BELLOWS COUPLING
SKU: 1002397
Availability: LimitedAvailability

Manufacturer: KBK

Type: Bellows Coupling

Model: KB4C/30-18-24

Size: 30

Material: Aluminum

Bore diameter d1/ d2: 18 mm/ 24 mm

Outer diameter: 56 mm

Total length: 66 mm

Torque: 30 Nm

Torsional stiffness: 28000 Nm/rad

Radial spring stiffness: 225 N/mm

Axial spring stiffness: 28 N/mm

Shaft Fastening Method: Clamping hubs

Teknik Özellikler	Değer
Weight	0,29 kg
Condition	Used
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Bore Diameter d1/d2 [mm]	18 / 24
Outer Diameter [mm]	56
Torque [Nm]	30
Torsional Stiffness [Nm/rad]	28000
Radial Spring Stiffness [N/mm]	225
Axial Spring Stiffness [N/mm]	28
Shaft Fastening Method	Clamping Hubs

Fiyat	Talep Üzerine
Stok	1 Stokta
Kategori	Couplings
Koşul	Kullanılmış
SKU	1002397

Weight	0,29 kg
Condition	Used
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Bore Diameter d1/d2 [mm]	18 / 24
Outer Diameter [mm]	56
Torque [Nm]	30
Torsional Stiffness [Nm/rad]	28000
Radial Spring Stiffness [N/mm]	225
Axial Spring Stiffness [N/mm]	28
Shaft Fastening Method	Clamping Hubs

KBK KB4C/30-18-24 Bellows Coupling
