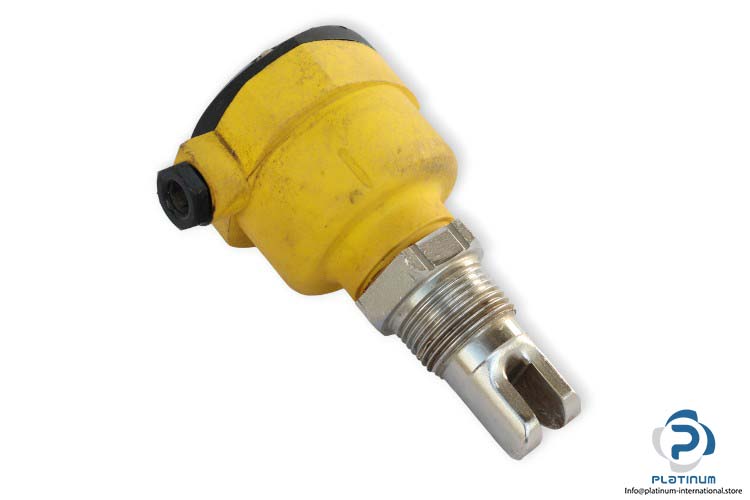

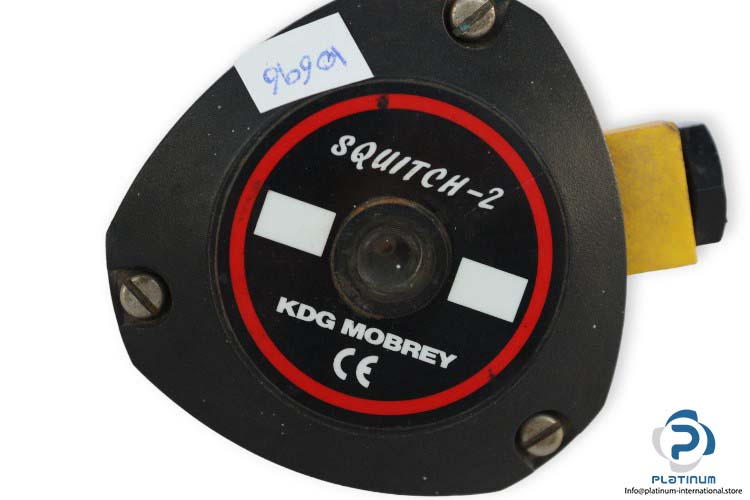

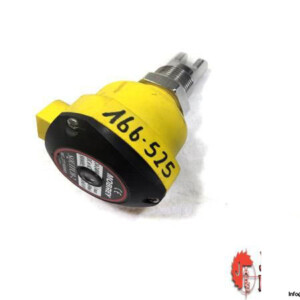

KDG Mobrey SQUITCH-2 Ultrasonic Liquid Level Switch

Manufacturer: KDG MOBREY
Type: Ultrasonic Liquid Level Switch
Model: SQUITCH2

Rated Voltage: 24 … 240 V AC/DC
Current Consumption Max.: 500 mA
Frequency: 50 … 60 Hz
Process Pressure: 0.25 … 20 bar
Process Temperature: -40 … 125 °C
Liquid Density (SG): 0.6 … 2.0
Liquid Viscosity: 0.2 … 10000 cPs
Switch Material:
Wet Side: 316L Stainless Steel
Dry Side: Glass-Filled Nylon
Protection Class: IP66/67
Switch Fork Length: 36 mm
Switch Length, Diameter: 143, 76 mm
Ambient Temperature: -40 … 50 °C
