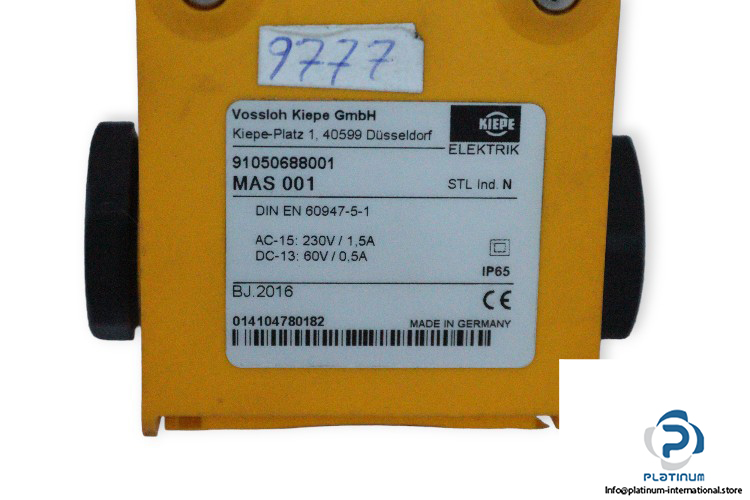

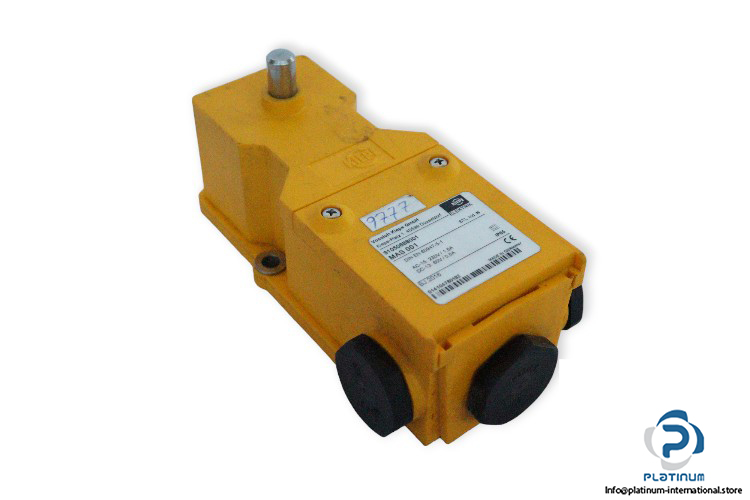

Kiepe MAS 001 Misalignment Switch

Manufacture: Kiepe
Type: Conveyor Belt Misalignment Switch
Model: MAS 001
Part No.: 91050688001

Rated insulation voltage: 250 V AC
Conventional thermal current Ith: 6 A
Switching capacity AC-15: AC 230 V/1,5 A DC-13: DC 60 V/0,5 A
Housing: Ultramid A3EG5
Mounting: By means of two M6 bolts
Cable entry: 3 x M25 x 1,5
Protection: IP 65 according to EN 60529
Switching system: 2 self-cleaning changeover contacts
Connections: 2,5 mm² max.
Ambient temperature: -25 … +70°C
