Kubler 8.5878.4632.3112 Absolute Encoder

Name: KUBLER 8.5878.4632.3112 ABSOLUTE ENCODER
Brand: KUBLER
SKU: 963672
Price: 320.00 USD
Availability: InStock







Kullanılmış

Stokta1 birimSevkiyata hazır

320,00$

ABSOLUTE ENCODER

Kubler 8.5878.4632.3112 is a high-precision 16-bit absolute encoder with PROFIBUS DP, featuring a blind hollow shaft, IP67 protection, and wide voltage input for robust industrial use.

Üretici

KUBLER

SKU

963672

Kategori

Rotary Encoders

Koşul

Kullanılmış

16 Absolute Bit Blind Connector coupling Encoder High hollow Industrial IP67 Kubler M12 Profibus Resolution shaft Stator

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

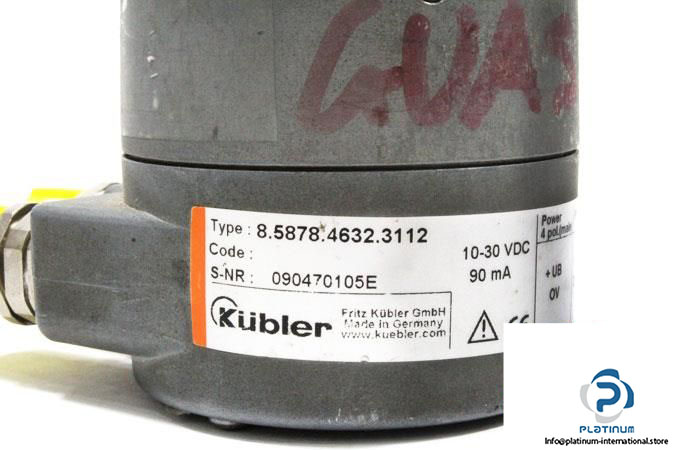

KUBLER 8.5878.4632.3112 ABSOLUTE ENCODER

Engineered for demanding industrial environments, the Kubler 8.5878.4632.3112 absolute encoder provides high-precision position feedback with PROFIBUS DP communication. Designed with a stator coupling flange and blind hollow shaft, this encoder ensures efficient and accurate signal transmission in harsh conditions.

Manufacturer: KUBLER

Type: Absolute Encoder

Model: 8.5878.4632.3112

Serial No.: 090470105E

Flange Design	Stator Coupling
Shaft Design	Blind Hollow Shaft
Shaft Diameter	15 mm
Voltage Supply	10 / 30 VDC
Resolution	16 bit (Singleturn)
Current Consumption	90 mA
Interface	PROFIBUS DP
Type of Connection	M12 Connector, 12-Pin, Radial
Baud Rate	Max. 12 Mbit/s
Protection Class	IP67
Operating Temperature	-40 / 80 °C
