Lenze E94ASHE0074 Single Drive Highline

Stokta1 birimSevkiyata hazır

666,66$

SINGLE DRIVE HIGHLINe

Lenze E94ASHE0074 HighLine single drive with 24 V control, 7 A rated current, 400/540 V voltage class, 3/PE AC input, 0“599 Hz output, and ProfiNet interface.

Üretici
LENZE
SKU
1086859
Koşul
Kullanılmış
Paylaş
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

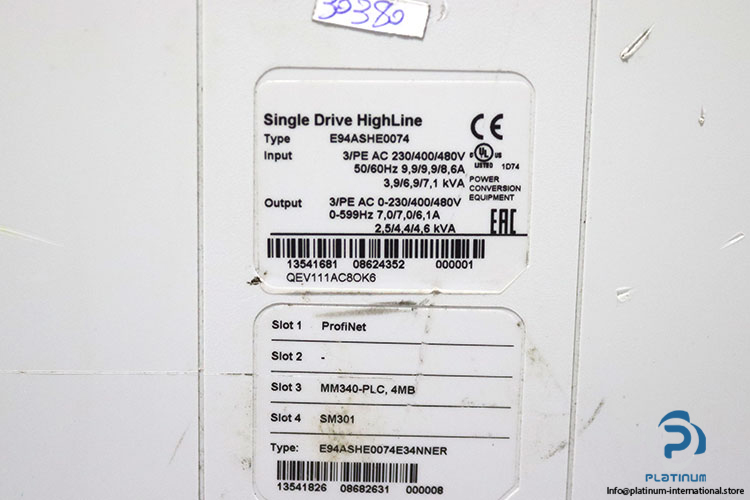

Lenze E94ASHE0074 Single Drive HighLine

The Lenze E94ASHE0074 is a high-performance single-axis controller from the HighLine series, designed for precise motor control and advanced automation applications. With robust input/output ratings, communication flexibility, and expansion slots, it delivers efficiency and reliability for industrial drive systems.

Manufacturer: Lenze

Type: Single Drive HighLine

Model: E94ASHE0074

Serial No.: QEV111AC8OK6/ 08624352/ 000001/ 13541681/ 13541826 /08682631/000008

Type Code: E94ASHE0074E34NNER

Version: 1

Design: S, Single-axis controller (Single Drive)

Variant: H, HighLine

Mechanical Version: E, Installation

Input

Output

Expansion Slots

Control Voltage24 V
Rated Current7 A
Voltage Class4, 400 V / 540 V
Voltage3/PE AC 230/400/480 V
Frequency50/60 Hz
Current9.9 / 9.9 / 8.6 A
Power3.9 / 6.9 / 7.1 kVA
Voltage3/PE AC 0 “ 230/400/480 V
Frequency0 to 599 Hz
Current7.0 / 7.0 / 6.1 A
Power2.5 / 4.4 / 4.6 kVA
Slot 1ProfiNet (communication interface)
Slot 2Empty / Reserved
Slot 3MM340-PLC, 4 MB
Slot 4SM301
