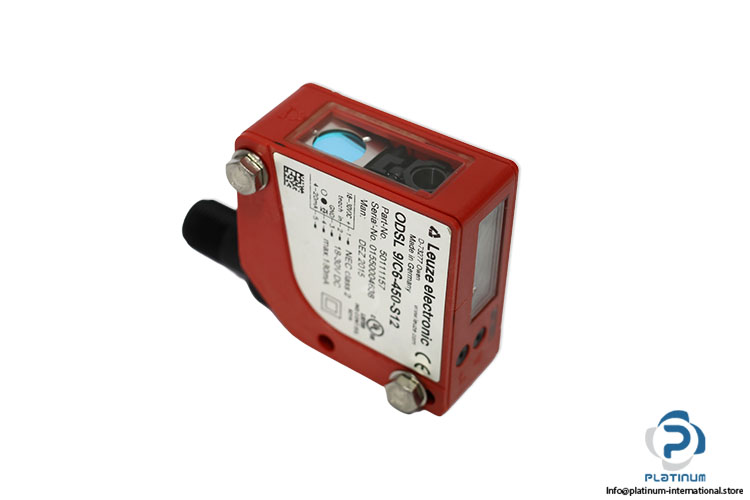

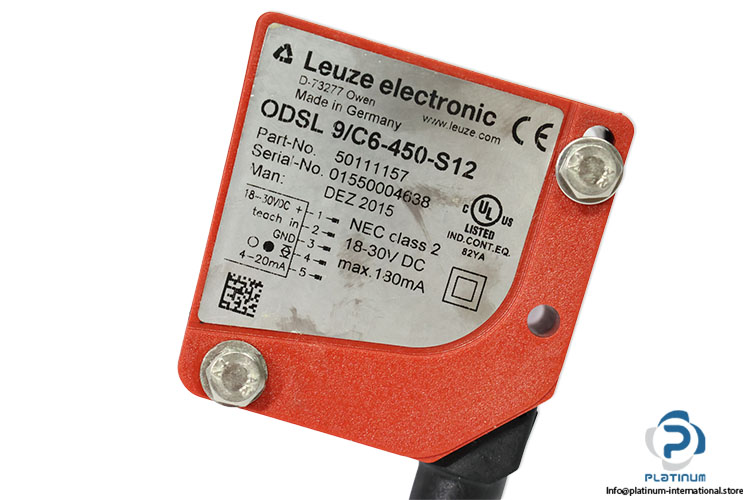

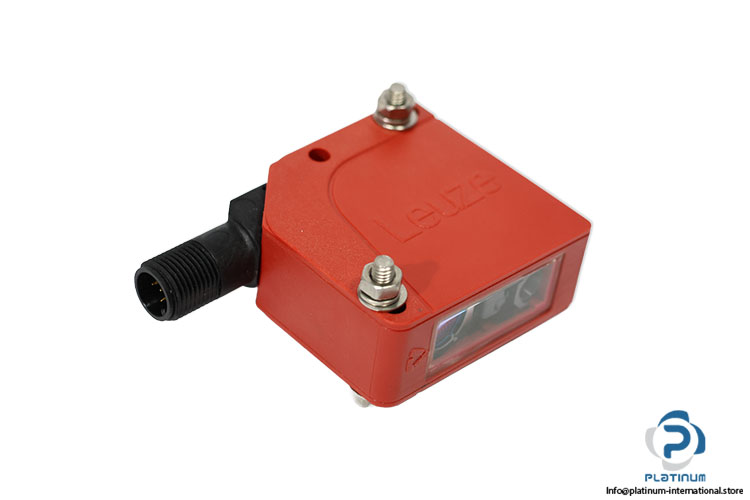

Leuze Electronic Odsl 9/C6-450-S12 Optical Distance Sensor
Kullanılmış
Talep üzerine mevcut
The Leuze Electronic ODSL 9/C6-450-S12 is a high-precision optical distance sensor featuring a 50–450 mm measuring range, 0.1 mm resolution, 18–30 V DC supply, and IP67 protection. It is ideal for industrial positioning, automation, and quality inspection applications.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
| Part No. | 50111157 |
| Serial No. | 01550004638 |
| Series | 9 |
| Supply voltage | 18 ... 30 V, DC |
| Current | 0 ... 180 mA |
| Contact | 1 contact, pin 5 |

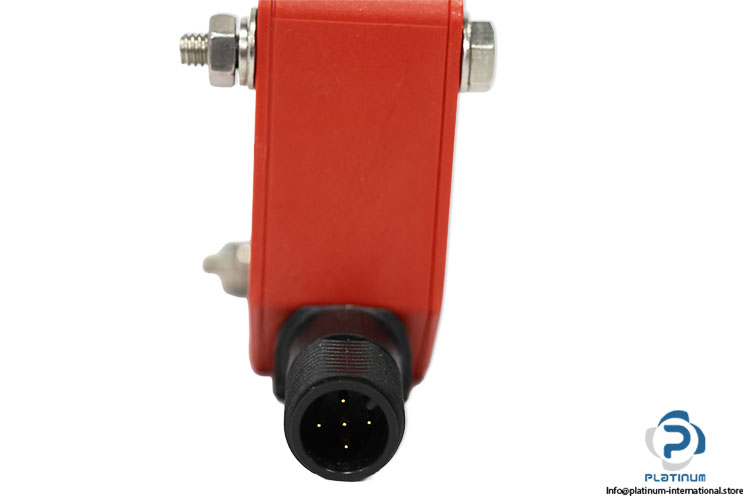

| Type of connection | Connector, Turning, 90°, 12M, male |
| Readiness delay | 300 ms |
| Encoding | A-coded |
| Measurement range | 50 ... 450 mm |
| Resolution | 0.1 mm |
| Dimensions | 21 mm x 50 mm x 50 mm |
| Housing material | Plastic, PC |
| Ambient temperature | -20 ... 50 °C |
| Degree of protection | IP 67 |
| Certificate | CE, UL |
| Condition | Used |
| Stock key | EU002 |
| SKU | 1093266 |
| Weight | 0,05 |
