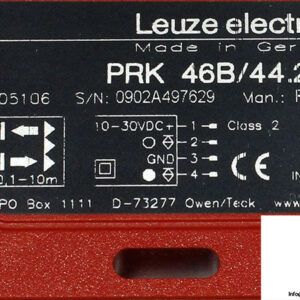

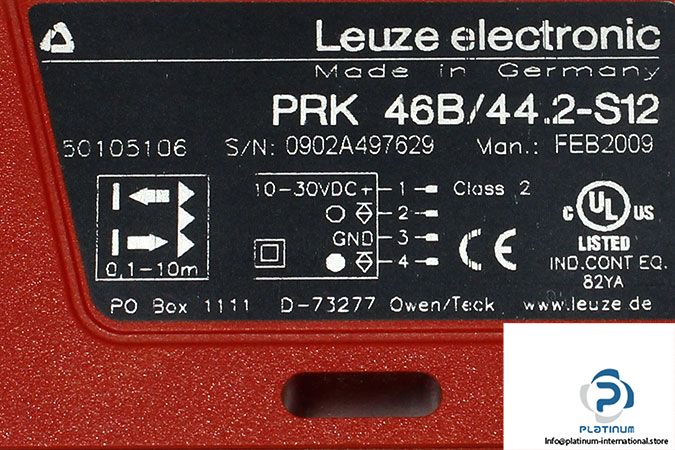

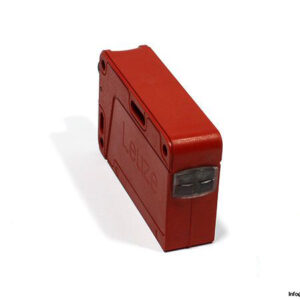

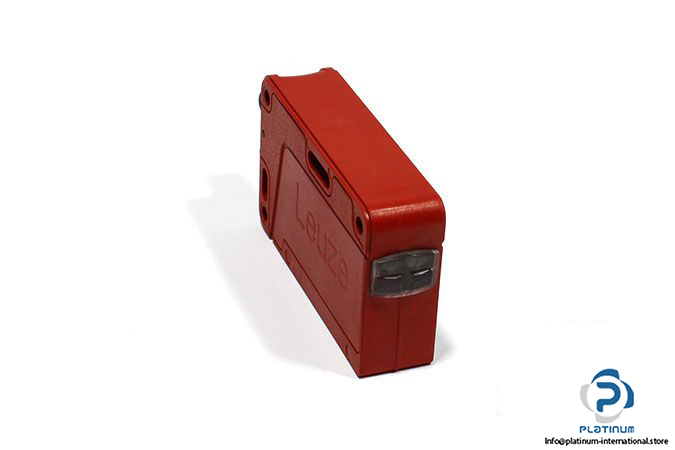

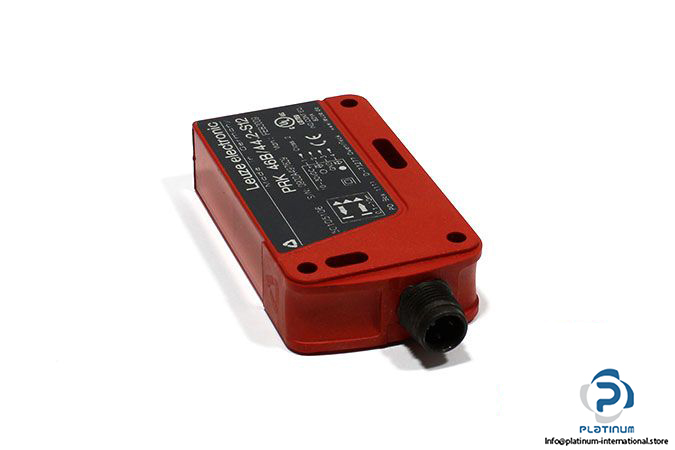

Leuze PRK 46B/44.2-S12 Polarized Retro-Reflective Photoelectric Sensor

Manufacturer: LEUZE

Type: POLARIZED RETRO-REFLECTIVE PHOTOELECTRIC SENSOR

Order Code: PRK-46B/44.2-S12

Part No.: 50105106

Sensing range: 0.1 …10 m

Response time: 1 ms

Delay before start up: ≤ 300 ms

Operating Voltage: 10 … 30 V DC

Output Current: 100 mA

Switching frequency: 500 Hz

Light source: LED

Wave length: 620 nm (Visible red light, Polarized)

Electrical design: PNP

Switching output: Dark / light switching

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -30 … 60°C

Dimensions: 43 x 72 x 18 mm

Weight: 50 g

Housing: Rectangular

Housing material: Plastic
