Lika I58S-Y-500BND210R/S71A Incremental Encoder

Name: LIKA I58S-Y-500BND210R/S71A INCREMENTAL ENCODER
Brand: LIKA
SKU: 1002846
Availability: LimitedAvailability

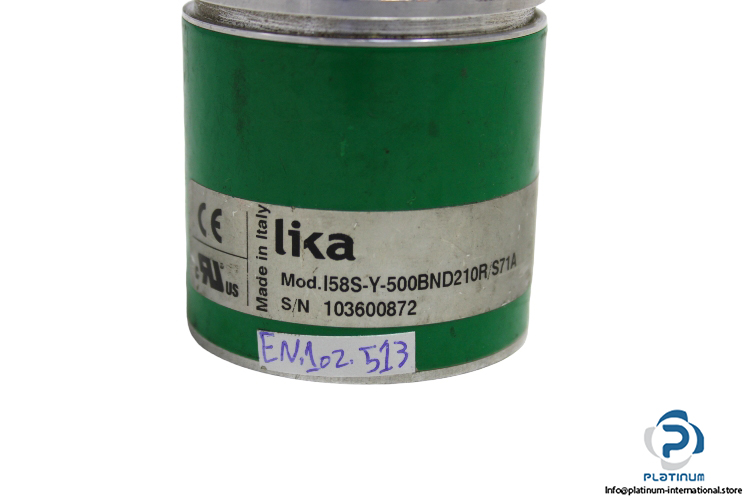

lika-i58s-y-500bnd210r_s71a-incremental-encoder-1

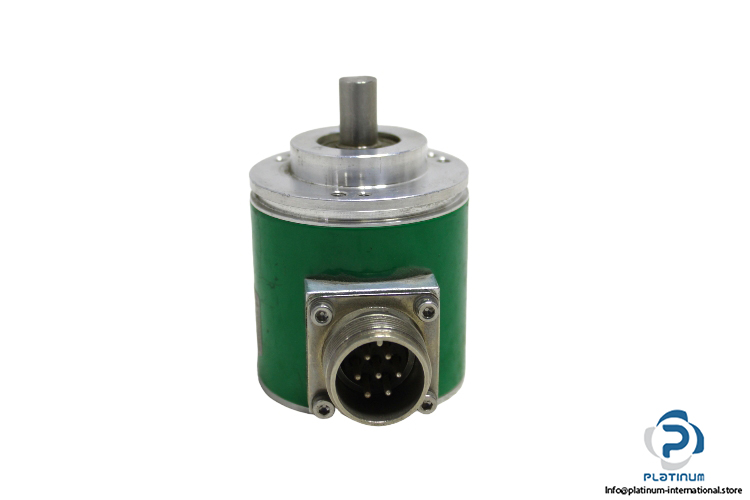

lika-i58s-y-500bnd210r_s71a-incremental-encoder-2

Kullanılmış

Stokta1 birimSevkiyata hazır

ARTIMLI ENKODER Lika I58S-Y-500BND210R/S71A 500 PPR çözünürlük, 10 mm katı mil ve IP64 koruma sağlar. Yüksek doğruluk ve radyal bağlantı gerektiren endüstriyel otomasyon sistemleri için idealdir.

Üretici

LIKA

SKU

1002846

Kategori

Rotary Encoders

Koşul

Kullanılmış

500 Automation Encoder Flange High I58S-Y-500BND210R/S71A Incremental Industrial IP64 Lika Output PPR Pull Push Resolution Sensor shaft Solid Square

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

LIKA I58S-Y-500BND210R/S71A INCREMENTAL ENCODER

The Lika I58S-Y-500BND210R/S71A is a high-precision incremental encoder engineered for demanding industrial automation systems. It features a solid shaft, square flange, and robust electrical and mechanical specifications to ensure reliable performance in challenging environments.

Manufacturer: Lika

Type: Incremental Encoder

Model: I58S-Y-500BND210R/S71A

Serial No.: 103600872

Shaft Type	Solid Shaft
Flange Type	Square Flange
Shaft Diameter	10 mm
Resolution	500 Pulses per Revolution
Voltage Supply	10 / 30 V
Counting Frequency	300 kHz
Output Circuits	Push Pull
Consumption	70 mA
Connection Position	Radial
Protection Class	IP64
Operating Temperature	-25 / 85 °C
