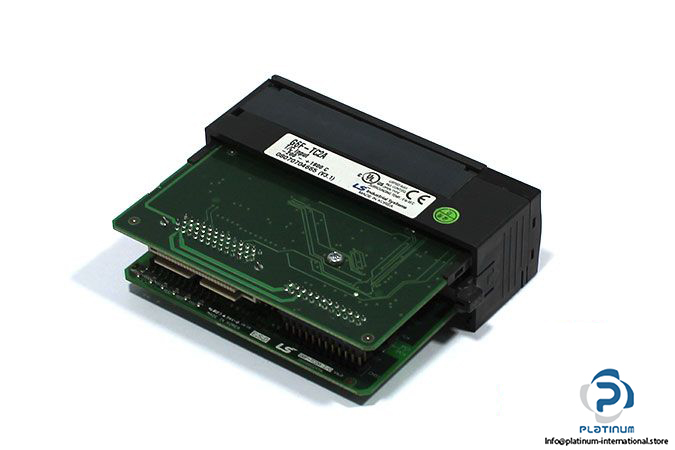

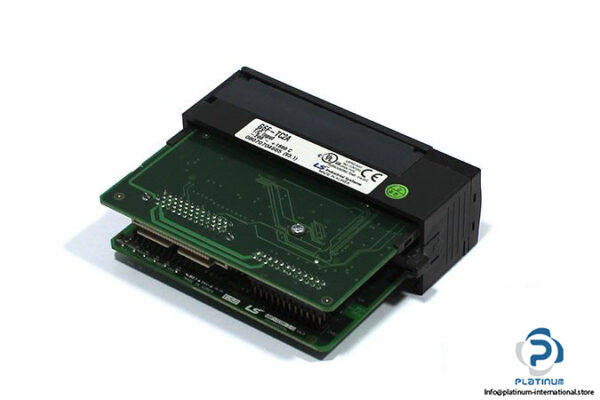

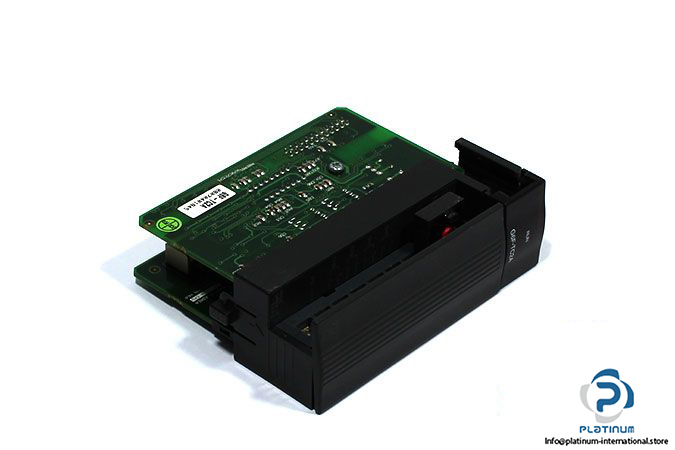

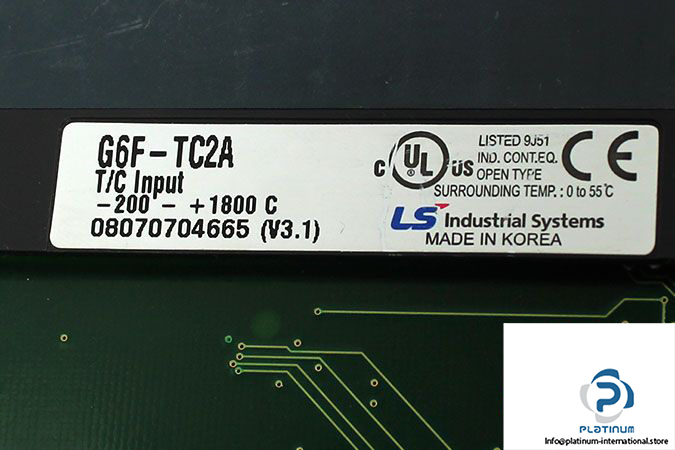

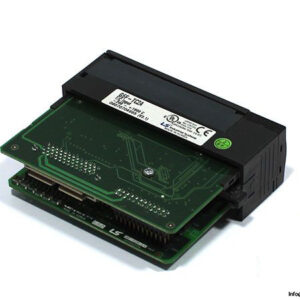

LS G6F-TC2A T/C Input Module

Manufacturer: LS

Type: T/C Input Module

Model: G6F-TC2A

Temperature: -200…1800 °C

Internal Current Consumption: +5V : 100 mA / +15V : 40 mA /  -15V : 20 mA

Number of Temperature Input Channel: 4 Channels Per Module

Maximum Conversion Speed: 50 ms Per Channel

Burn-Out Detection: Every Channel Has Detected

Reference Junction Compensation: Automatic Compensation

Connectable Thermocouple: Type K, J, E, T, B, R or S Thermocouple

Connection Terminal Block: 18-point terminal block

Dimensions: 110 x 89 x 35 mm
