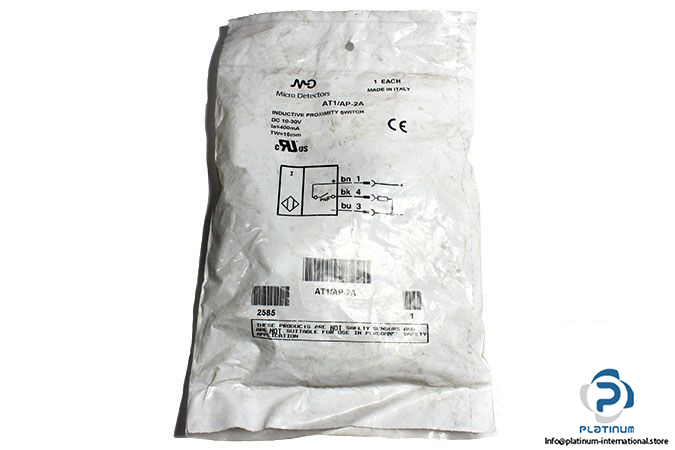

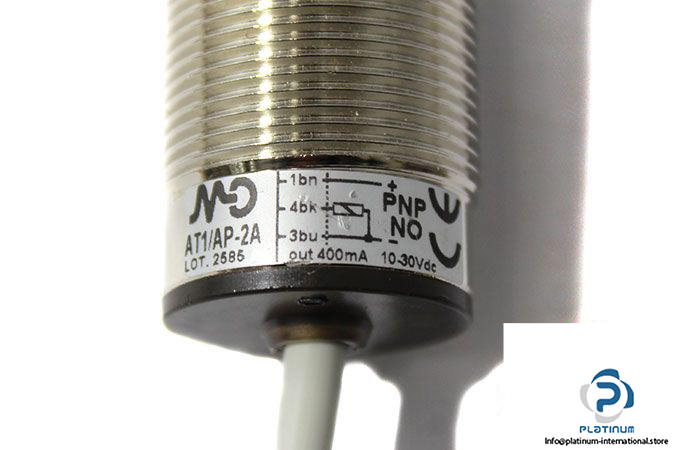

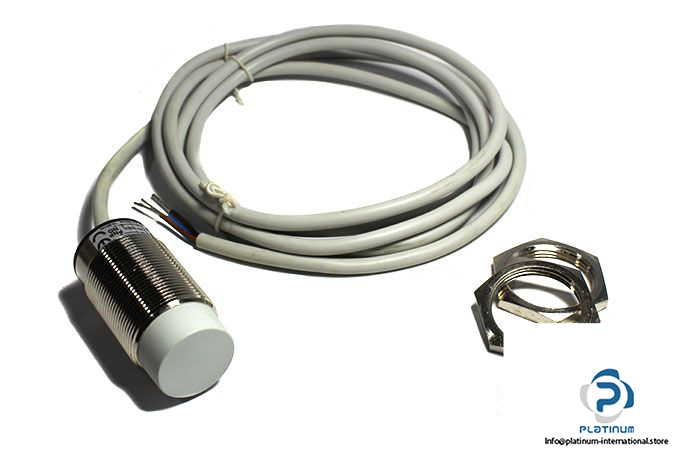

Micro Detectors AT1-AP-2A Inductive Proximity Sensor

Manufacturer: M.D. Micro Detectors

Type: Inductive Proximity Sensor

Series: AT

Model: AT1/AP-2A

Sensing Range: 15 mm

Operating Voltage: 10 … 30 V DC

Load Current: 400 mA

No-Load Supply Current: 20 mA

Output Type: PNP

Output State: NO

Switching Frequency: 300 Hz

Ambient Temperature: -25 … 70 °C

Degree of Protection: IP67

Connection: Cable 2m, 3-Wire

Housing Material: Nickel-Plated Brass

Diameter, Housing Length: 30, 60 mm

Weight: 0.225 kg
