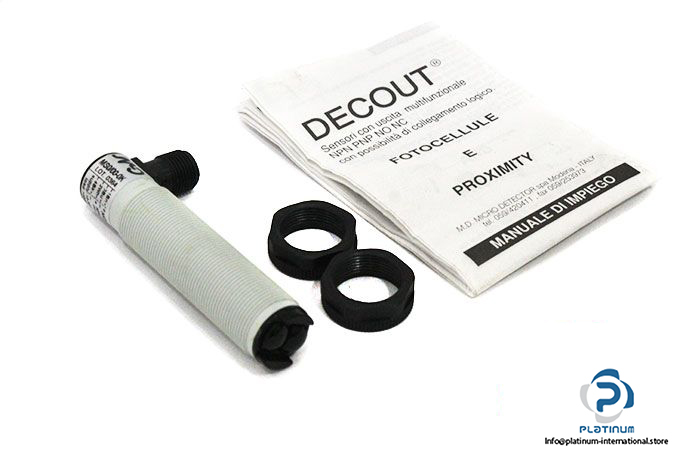

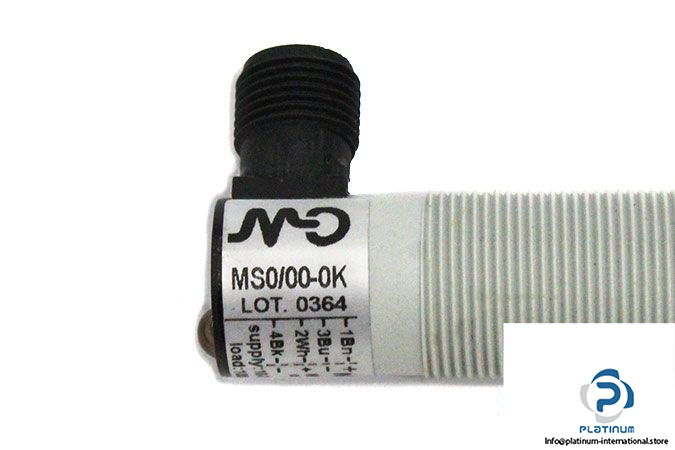

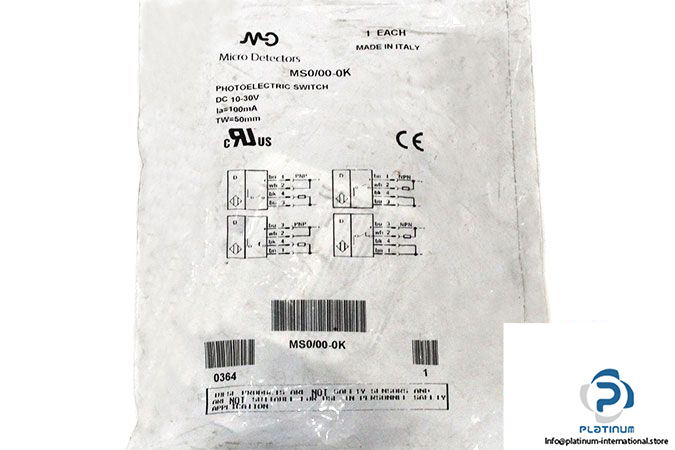

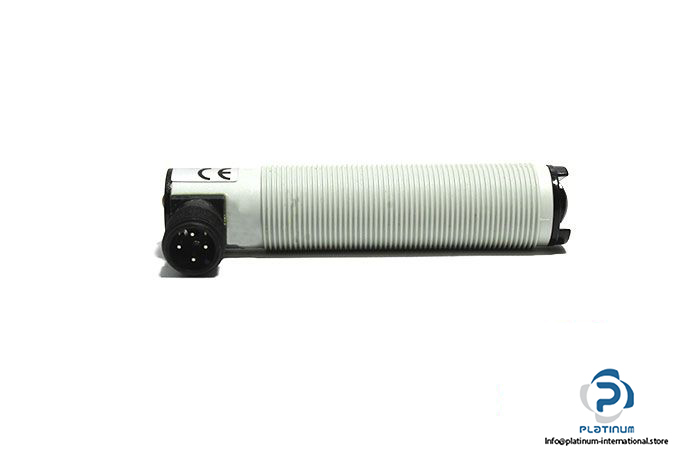

Micro Detectors MS0/00-0K Photoelectric Sensor

Manufacturer: M.D. Micro Detectors

Type: Photoelectric Sensor

Series: MS

Model: MS0/00-0K



Function: Background Suppression

Nominal Sensing Distance: 50 mm

Emission: Infrared (880 nm)

Operating Voltage: 10 … 30 V DC

Load Current: 100 mA

Output Type: DECOUT ® (NPN/PNP, NO, NC)

Power on Delay: 200 ms

Switching Frequency: 1000 Hz

Ambient Temperature: -25 … 70 °C

Degree of Protection: IP67

Connection: Radial Plug Exit (M12x1 4-Pin)

Housing: Plastic

LED: Red

Optic Material: PMMA

Diameter, Housing Length: M18, 78.6 mm

Weight: 0.045 kg
