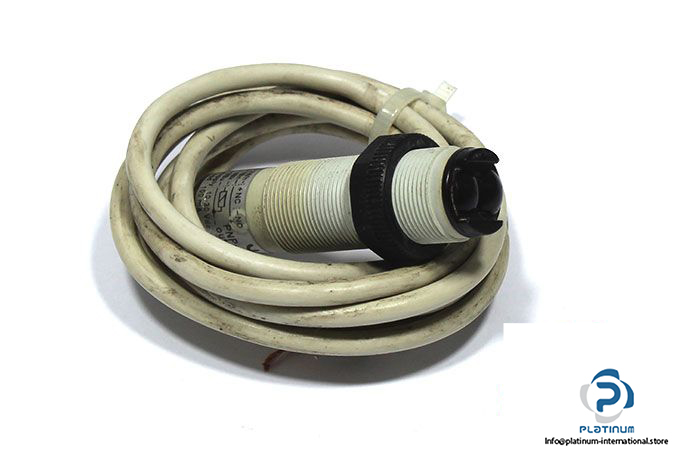

Micro Detectors SSC/0P-0A Photoelectric Sensor

Manufacturer: Micro Detectors MD

Type: Photoelectric Sensor

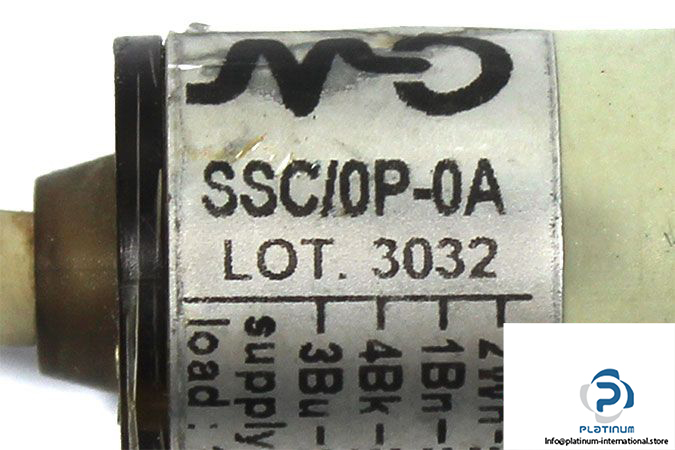

Model: SSC/0P-0A

Optic: Axial

Nominal Sensing Distance: 5 m with Reflector RL 110

Differential Travel: ≤ 10 %

Ripple: ≤ 10 %

Switching Frequency: 250 Hz

Power on Delay: 200 ms

Operating Voltage: 10…30 VDC

Supply Current: 30 mA

load Current: 100 mA

Tightening Torque: 1 Nm

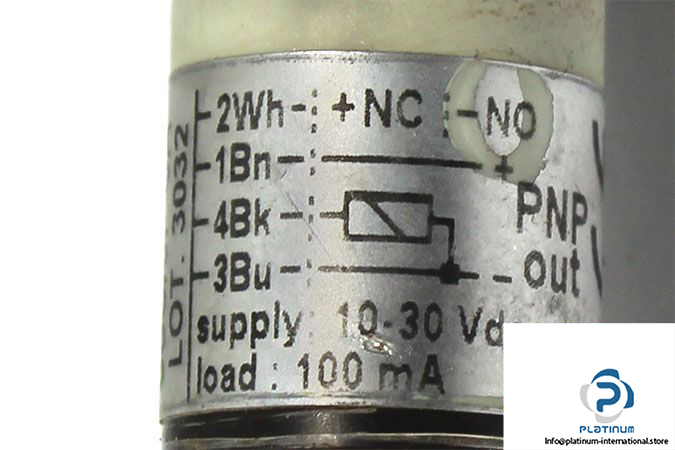

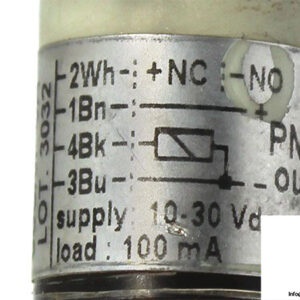

Electrical Design: PNP

Output Function: Normally Open/Normally Closed

Protection Class: IP67

LEDs: Yellow

Operating Temperature: -25…70°C

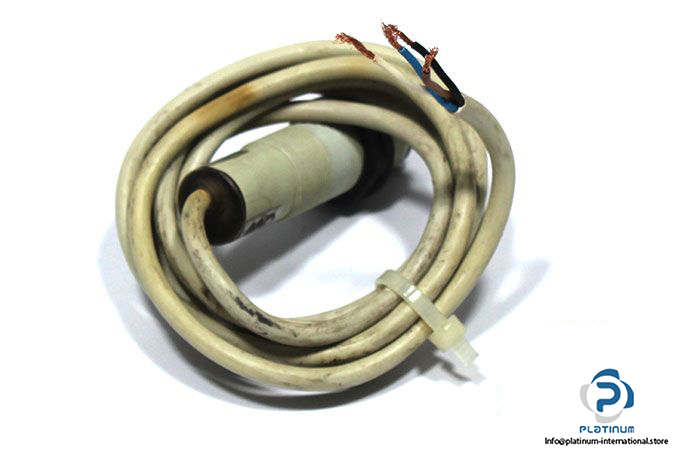

Cable: Axial cable exit 4 Wire

Housing: Plastic

Mounting: M18

Length: 61 mm

Weight: 70 g
