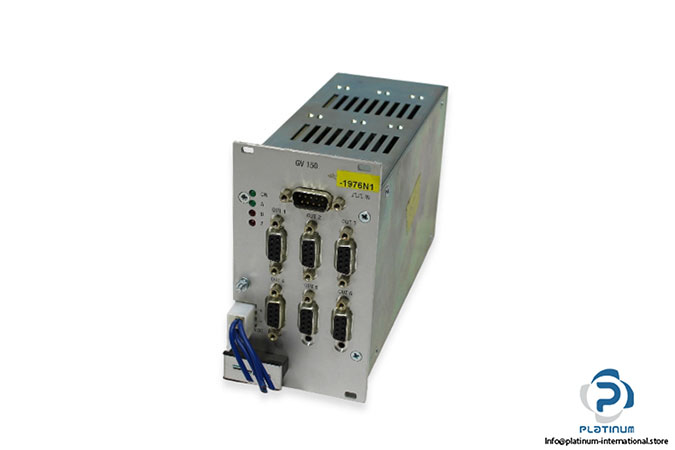

MKS GV150 0601 Impulse Amplifier AND Splitter FOR Encoder Signals
Impulse Amplifier & Splitter MKS GV150 0601, enkoder sinyalleri için hassas bir amplifikatör ve bölücüdür, 6 çıkış kanalı, TTL/HTL voltaj girişi ve 400 kHz'e kadar yüksek frekans sinyallerini destekler. Endüstriyel otomasyon sistemlerinde DIN ray montajı için idealdir.
MKS GV150 0601 Impulse Amplifier and Splitter for Encoder Signals
The MKS GV150 0601 is a high-performance impulse amplifier and splitter specifically designed for encoder signals. Engineered for precision in industrial applications, this device ensures clean signal distribution across multiple output channels with high-frequency support and versatile voltage inputs.
Manufacturer: MKS
Type: Impulse Amplifier and Splitter for Encoder Signals
Model: GV150 0601

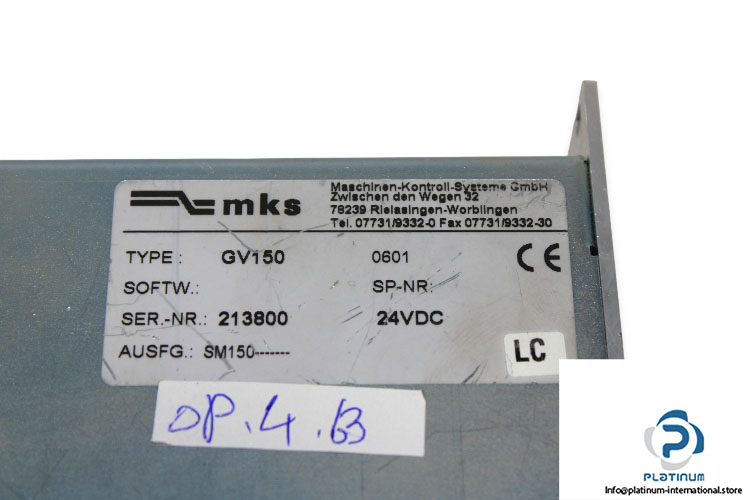

SN: 213800
REF NO: SM150...
Order No.: 68817200 969 471
| Power Supply | 24 VDC |
| Number of Output Channels | 6 output channels |
| Aux. Voltage on Input | 5 V DC, 300 mA (TTL) / 18“30 V DC, 300 mA (HTL) |
| Max. Frequency | 400 kHz (TTL output) / 250 kHz (HTL output) |
| Operating Temperature | 0° to +45°C |
| Mounting | DIN mounting |
