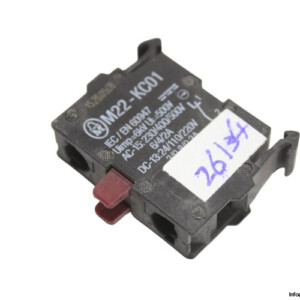

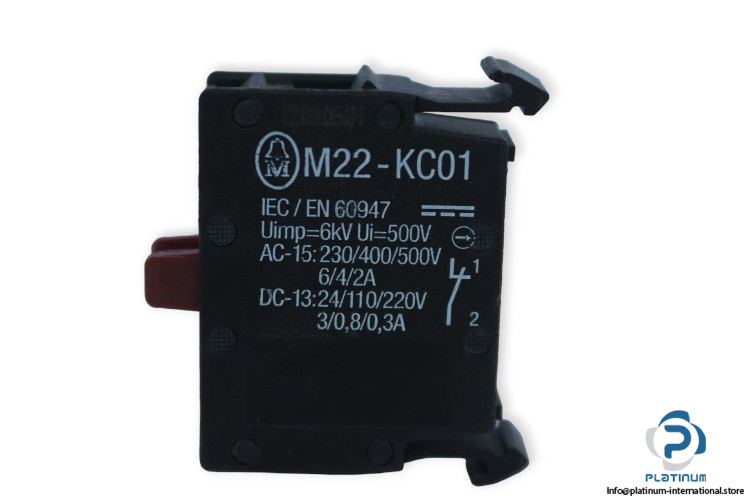

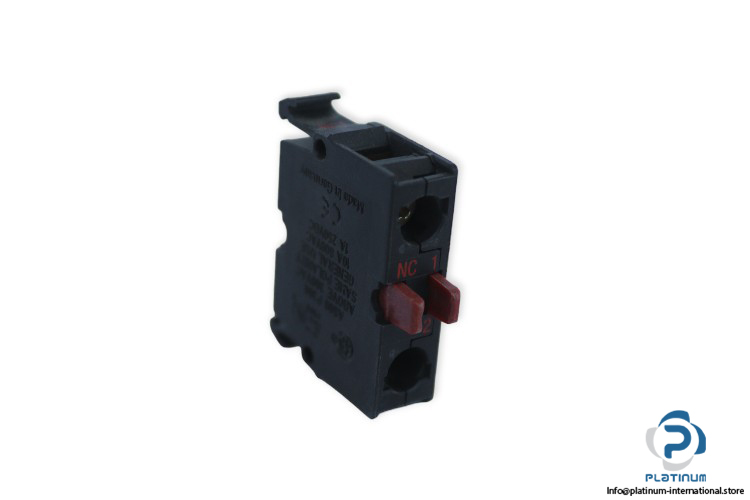

Moeller M22-KC01 Contact Module
Kontakt Modülü
Manufacturer: Moeller
Type: Contact Module
Model: M22KC01
Part No.: 216382
Product Tradename: M22
Rated insulation voltage (Ui): 500 V
Rated impulse withstand voltage (Uimp): 6 kV AC
Rated operational current (Ie) at AC-15:
@230 V, 6 A
@400 V, 4 A
@500 V, 2 A
Rated operational current (Ie) at DC-13:
@24 V, 3 A
@110 V, 0.8 A
@220 V, 0.3 A
Rated conditional short-circuit current (Iq): 1 Ka
Contact: 1 Normally closed
Electric connection type: Screw connection
Pollution degree: 3
Operating torque: 0.8 N·m
Standard: IEC/EN 60947
Degree of protection: IP20
Ambient operating temperature: -25 … 70°C
Dimensions: 38 x 10 x 32 mm
