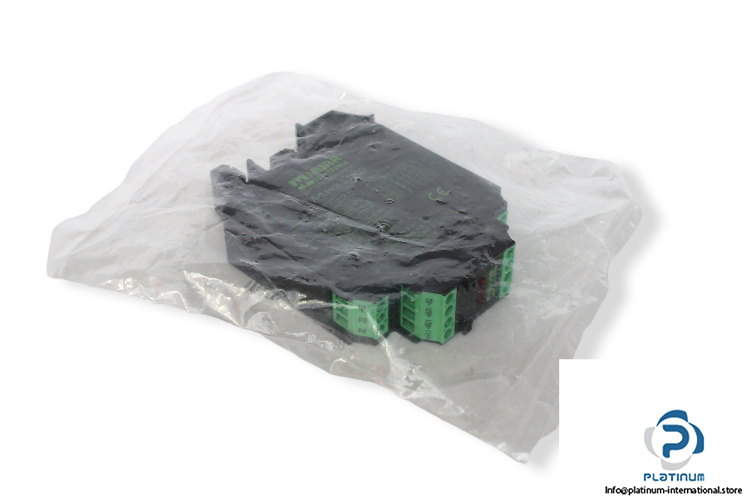

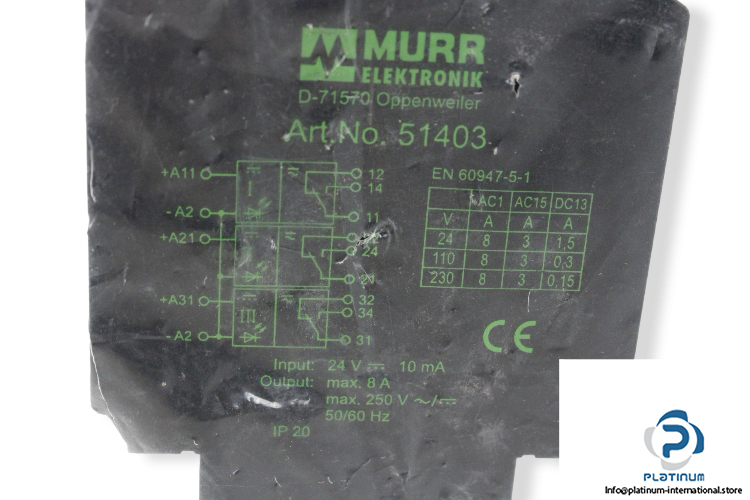

Murr 51403 Output Relay

Manufacturer: Murr

Type: Output Relay

Part No.: 51403

Input voltage: 24 V DC (19.2 … 30 V DC)

Input current: 10 mA

Switching voltage max.: 250 V AC/DC

Frequency: 50 … 60 Hz

Output current: 8 A

Power rating: max. 1250 VA/240 W

Output: 3 relays; each 1 NO/NC contact

Contact rating

AC-15: 3 A (24/110/230 V AC)

AC-1: 8 A (24/110/230 V AC)

DC-13: 1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC)

Contact material: Ag Sn O2

Temperature range: -20 … +50 °C

Mounting method: DIN-rail

Degree of protection: IP20

Dimension: 102 x 22.5 x 75 mm
