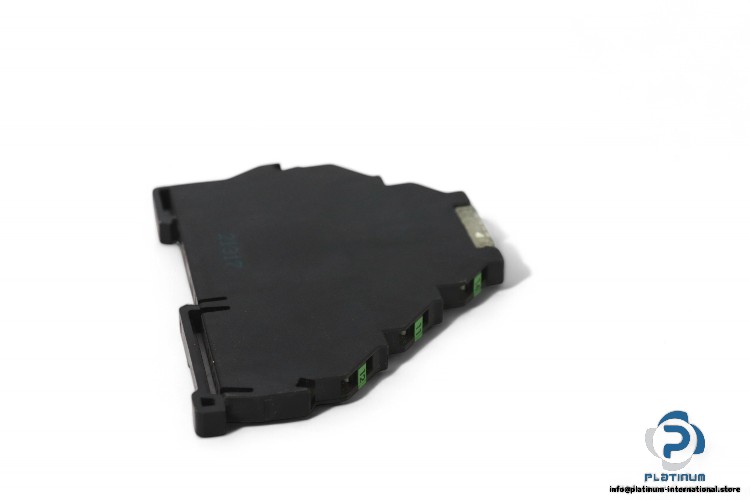

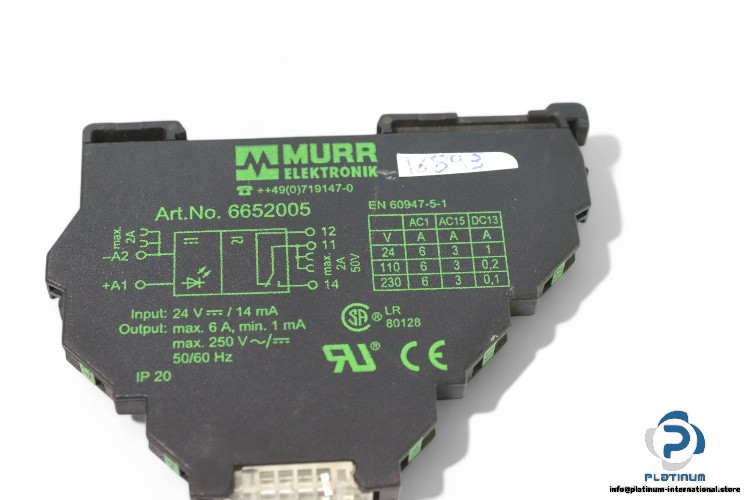

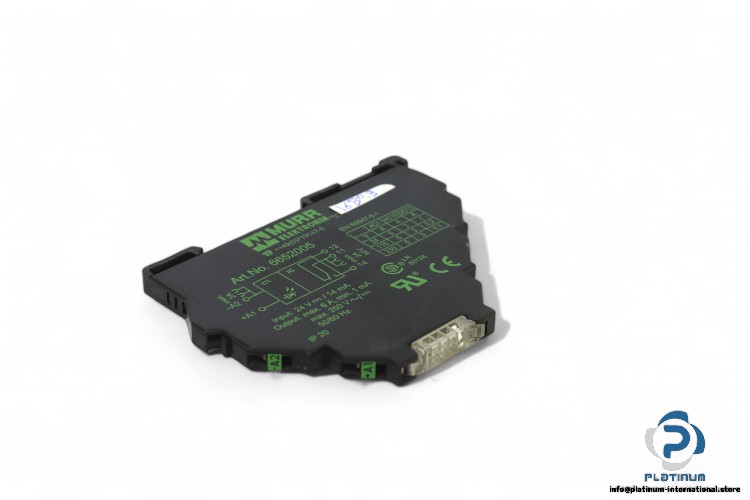

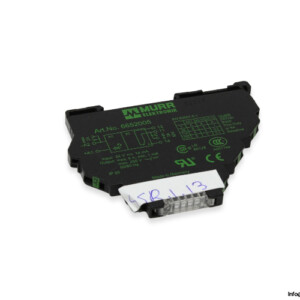

Murr 6652005 Input Relay

Manufacturer: Murr
Type: INPUT RELAY
Part No.: 6652005

Input data
Voltage: 24 V DC
Current: 14 mA
Output data
Switching voltage: max. 250 V AC/DC
Frequency: 50 / 60 Hz
load current: Min. 1 mA
Switching current per output: Max. 6 A
Contact type: 1 NO/NC contact
Contact material: Ag Sn O2 hv
Mounting method: geschnappt, DIN-rail mountable (EN 60715)
Operating Temperature: -25 … +60 °C
Degree of Protection: IP20
Dimension: 91 x 6.2 x 70 mm
