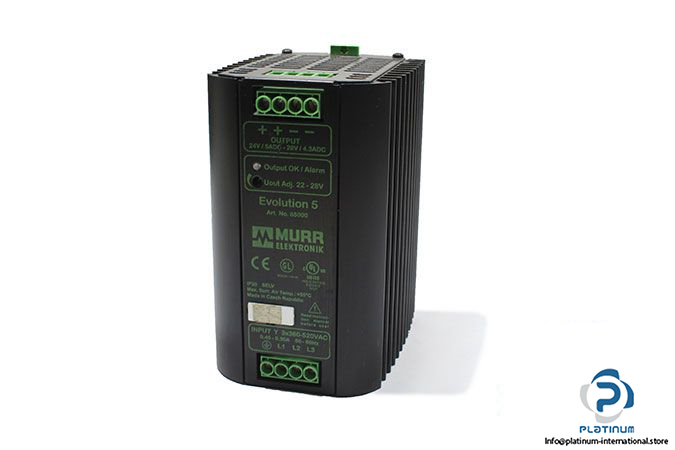

Murr Elektronik 85000 Evolution Power Supply

Manufacturer: MURR ELEKTRONIK

Type: Evolution Power Supply

Model: 85000

Input:

Input Voltage: 3 X 324 … 572 VAC / 480 … 745 VDC

Input Current: 3 X 0.45 A

Inrush Current After 1 ms: max. 10 A

Frequency: 50…60 Hz

Output:

Output Voltage: 24 VDC

Output Current: 5 A (+55 °C); 3 A (+70 °C)

Mains Failure Bridging Time: min. 30 ms (400 VAC)

Protection Class: IP20

Temperature Range: -25 … +70 °C

Connection: Screw terminals

Dimensions: 132 X 83 X 98 mm

Weight: 1 Kg
