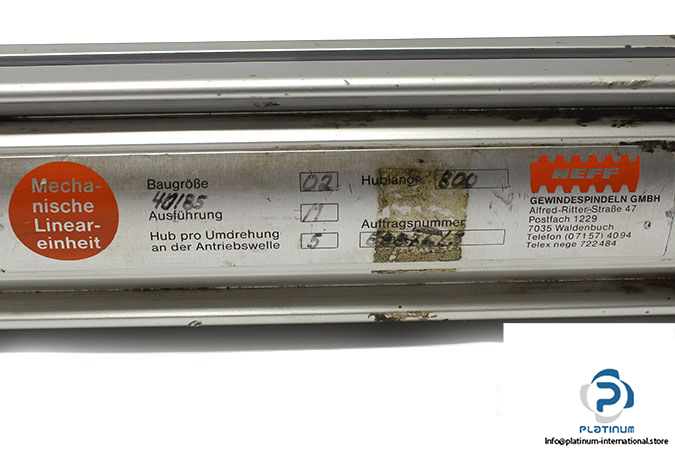

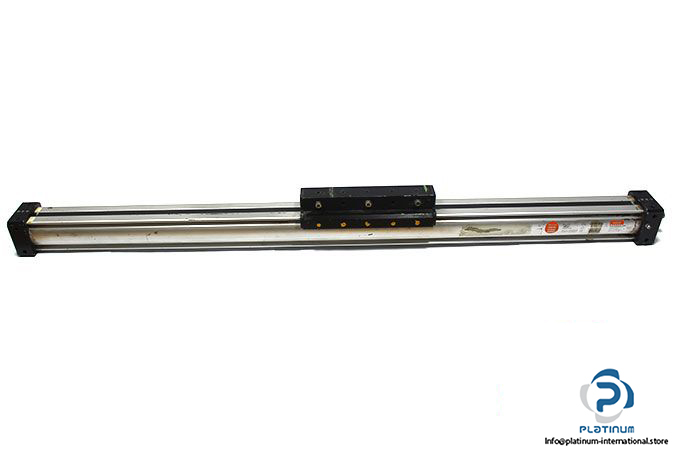

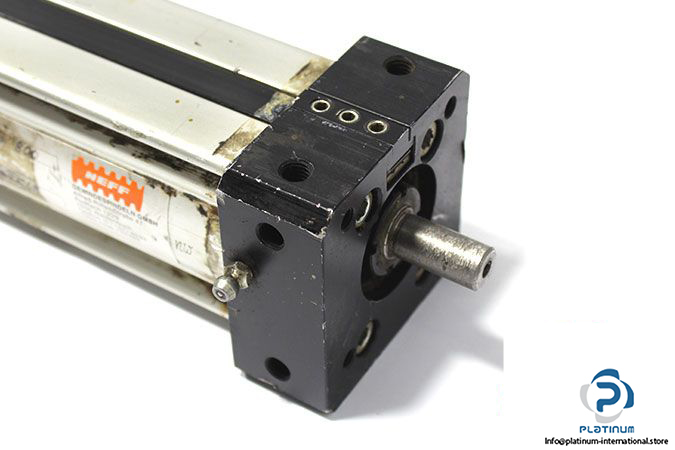

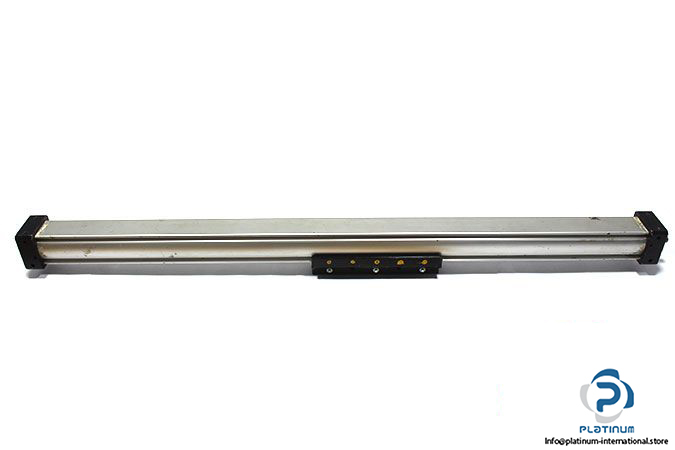

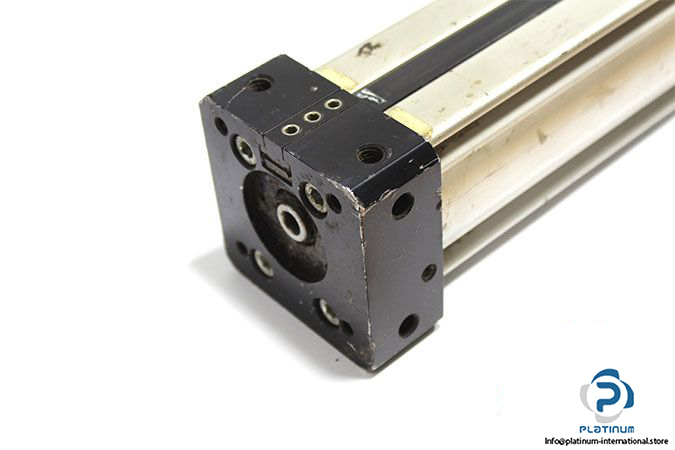

Neff Gewindespindeln 40/85 Linear Actuator

Manufacturer: NEFF GEWINDESPINDELN

Type: Linear Actuator

Model: 40/85

Materials

• Cover: Coated Cast Aluminum

Piston Diameter: 40 mm

Cushioning: Adjustable at Both Ends

Stroke: 800 mm

Operating Pressure: 1…8 bar

Pneumatic Connection: G1/4

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Magnet: without Magnet

Type of Mounting: with Accessories

Weight: 9.28kg
