NK Technologies AT1-005-000-FF AC Current Transducer
Kullanılmış
Stokta3 ünitelerSevkiyata hazır
NK Technologies AC Akım Dönüştürücü AT1005000FF, 0 ila 200 A giriş aralığı, 0 ila 5 V DC çıkış ve katı çekirdek kasa tipi. Hızlı tepki süresi ile doğru akım ölçümü için güvenilir.
0200550608/2aACAmbientCaseCurrentdcFrequencyHzimpedanceInputLimitNKOutputRangeresponseSignalSolid-coreTechnologiesTemperatureTimetoTransducerV
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

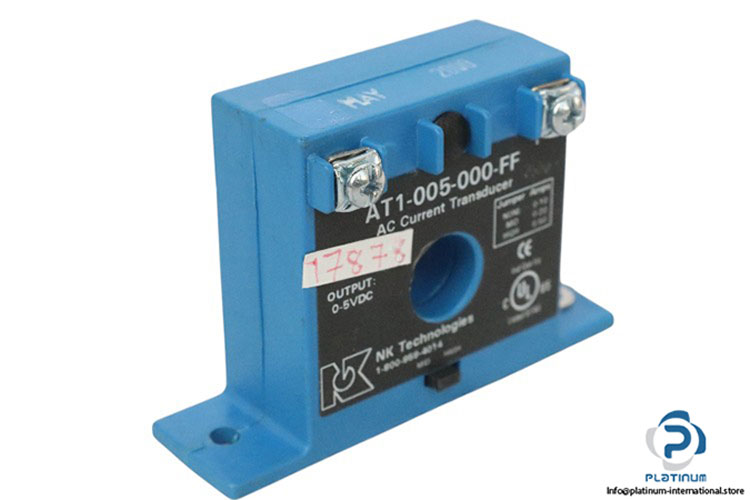

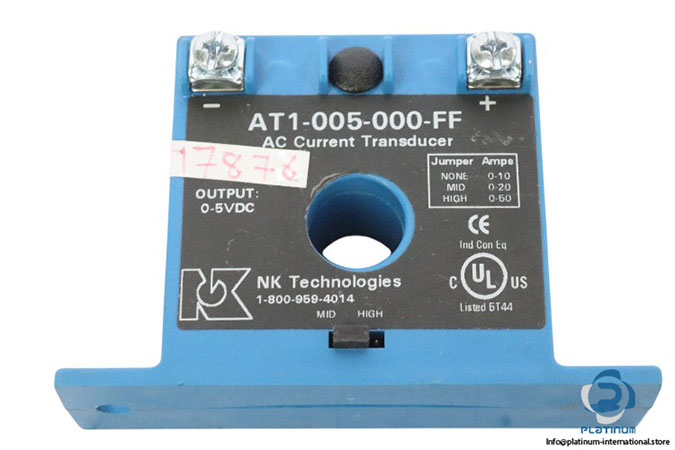

NK Technologies AC Current Transducer AT1005000FF
NK Technologies AC Current Transducer AT1005000FF is a high-quality device designed for accurate current measurement in industrial applications. Below are the key technical specifications:
- Manufacturer: NK Technologies
- Type: AC Current Transducer
- Model: AT1005000FF
- Series: AT
Technical Data:
- Power Supply: Self-powered (0 to 5/0 to 10 V DC output only)
- Input Range: 0 to 200 A
- Output Signal: 0 to 5 V DC
- Output Limit: 8.2 V DC
- Frequency Range: 50 to 60 Hz
- Output Impedance: 1 megaohm min
- Response Time: 100 ms
- Case Style: Solid-core, front terminal
- Ambient Temperature: -20 to 50°C
- Dimensions: 70 x 55.4 x 83.8 mm
