Nordson Problue 4 Adhesive Melter
Kullanılmış
Talep üzerine mevcut
Adhesive Melter
The Nordson PROBLUE 4 is a compact hot melt adhesive system with a 4-liter tank, 14:1 piston pump, and up to 32.7 kg/hr pump rate. Ideal for industrial glue applications with precise temperature control up to 230 °C.1022230A45AdhesiveEquipmentGlueHighHotIndustrialLiterMeltMelterNon-circulatingNordsonPortProblueSystemTankTempUnit
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

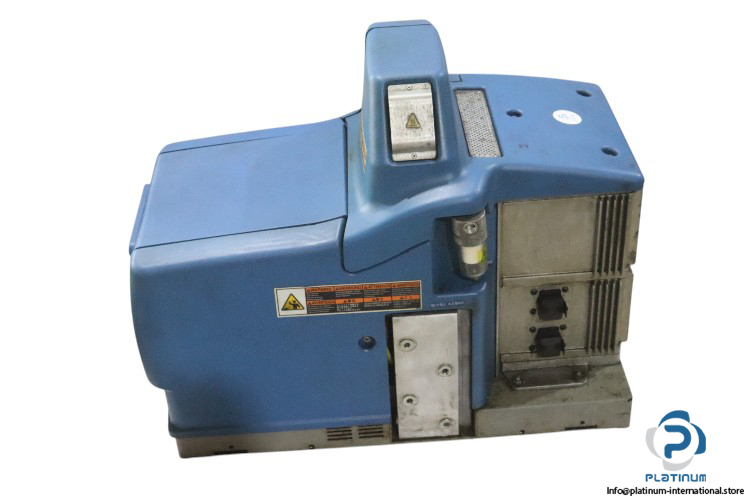

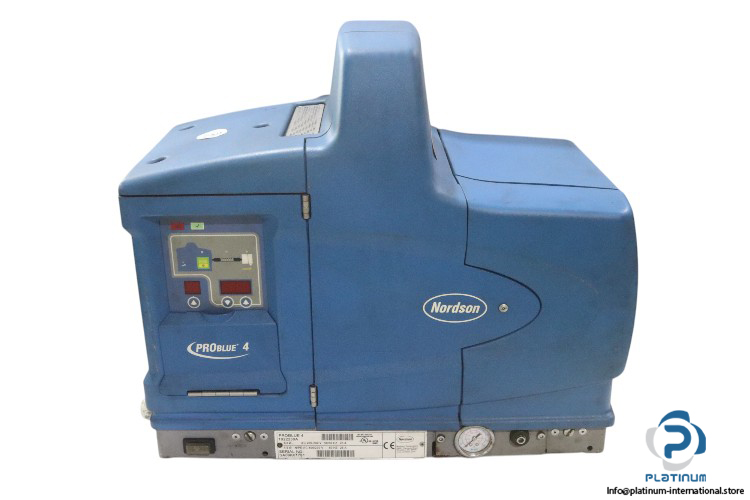

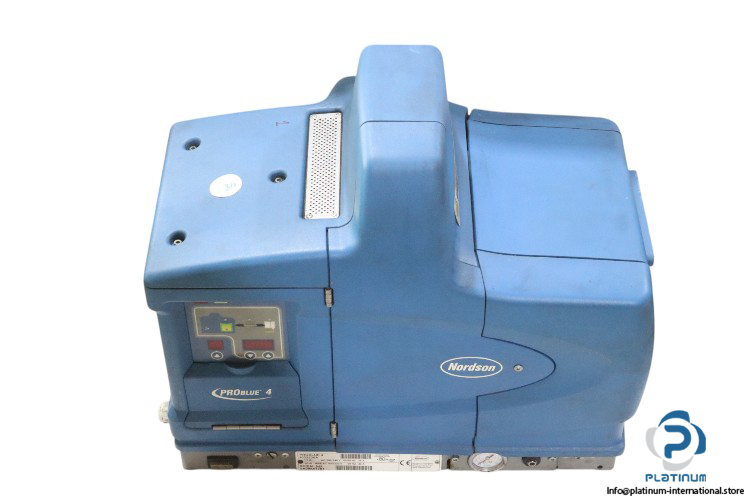

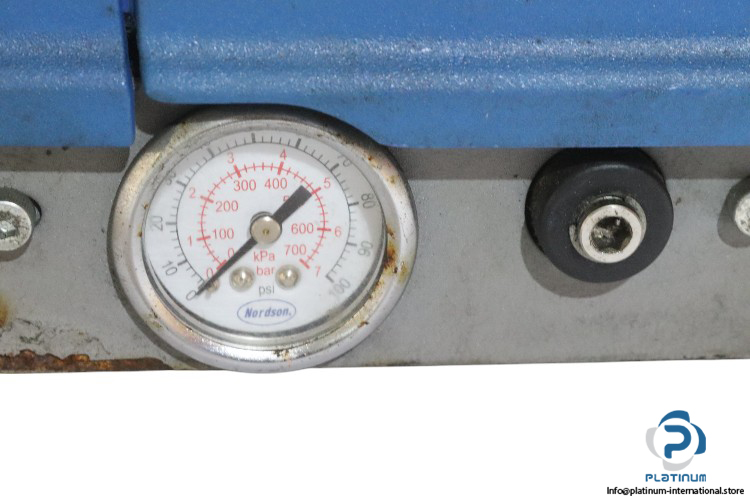

Nordson PROBLUE 4 Adhesive Melter
The Nordson PROBLUE 4 adhesive melter is a compact, high-efficiency hot melt system engineered for non-circulating applications using a 14:1 SP-style piston pump. With a robust melt rate, precise temperature control, and durable construction, it delivers reliable performance in packaging, assembly, and other industrial adhesive applications.
Manufacturer: Nordson
Type: Adhesive Melter
Model: PROBLUE 4

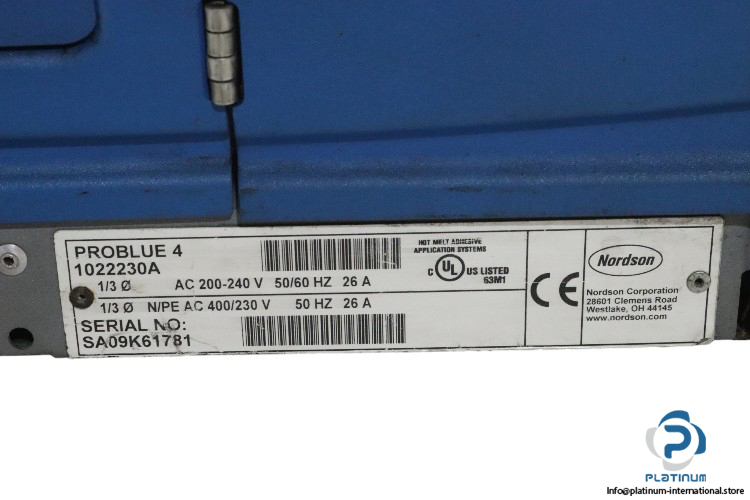

Part No.: 1022230A
Serial No.: SA09K61781
Maximum System Power Capacity:
Electrical Service Standard:
200 to 240 VAC 1 or 3 phase 50/60 Hz
200 to 240 VAC 1 phase N/PE 50/60 Hz
400/230 VAC 3 phase N/PE 50/60 Hz
| Type of System | Non-circulating tank (14:1 SP-style piston pump) |
| Tank Volume | 4 liters |
| Holding Capacity | 3.9 kg (8.6 lb) |
| Throughput | 6.8 kg (15 lb) |
| Melt Rate | 4.3 kg (9.5 lb) |
| Maximum Pump Rate | 32.7 kg/hr (72 lb/hr) |
| Rated Current | 26 A |
| Hose Ports | 5 |
| 2 hoses/guns | 4000 watts |
| 4 hoses/guns | 6000 watts |
| 6 hoses/guns | N/A |
| Filter Type | Saturn® basket-style filter |
| Hydraulic Pressure | 8.7 MPa (1260 psi) |
| Temperature Range | 40 to 230 °C |
| Ambient Temperature Range | 0 to 50 °C |
| Dimensions | 547 x 469 x 318 mm |
