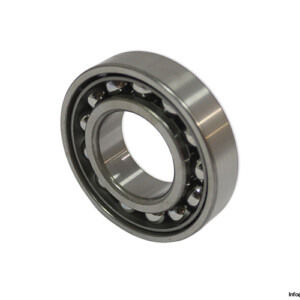

NTN 7207 Angular Contact Ball Bearing
Kullanılmış
Stokta2 ünitelerSevkiyata hazır
Açısal Kontaklı Rulman NTN 7207 uyumlu çift açısal kontaklı rulman 30Ø¢° temas açısıyla, yüksek yük kapasitesi ve hassas endüstriyel uygulamalar için preslenmiş çelik kafesle.
Yeni
Stokta
Bu ürün ayrıca yeni olarak da mevcuttur
Yeni Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
NTN 7207 Angular Contact Ball Bearing (Matched Pair)
The NTN 7207 angular contact ball bearing matched pair is designed to support combined radial and axial loads with high precision and stability. Its optimized contact angle and pressed steel cage ensure reliable performance in demanding industrial applications.
Manufacturer: NTN
Type: Matched Pairs Of Angular Contact Ball Bearing
Model: 7207
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 17 mm |
| Contact Angle | 30Ø¢° |
| Dynamic Load Rating (Cr) | 33 kN |
| Static Load Rating (C0r) | 20.1 kN |
| Fatigue Load Limit | 1.57 kN |
| Limiting Speed (Oil) | 14,000 rpm |
| Limiting Speed (Grease) | 11,000 rpm |
| Cage Material | Pressed Steel |
| Operating Temperature | -40 to +120 Ø¢°C |
