Omal SR30 Pneumatic Actuator
Kullanılmış
Stokta1 birimSevkiyata hazır
Pneumatic Actuator
The OMAL SR30 spring return pneumatic actuator delivers reliable torque from 15 Nm to 1920 Nm, operates up to 8 bar, and features a durable aluminum housing for industrial automation systems.890ActuatorAluminumAutomationbarComponentsDegreeEquipmentIndustrialOmalPneumaticReturnrotationSeriesspringSRSR30Valve
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

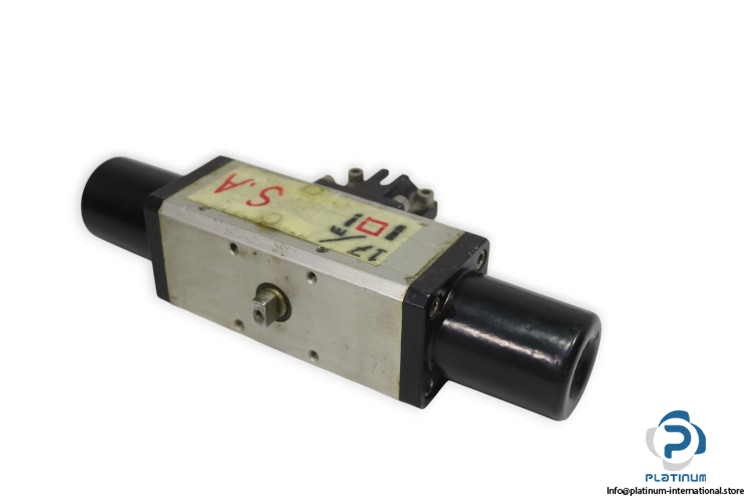

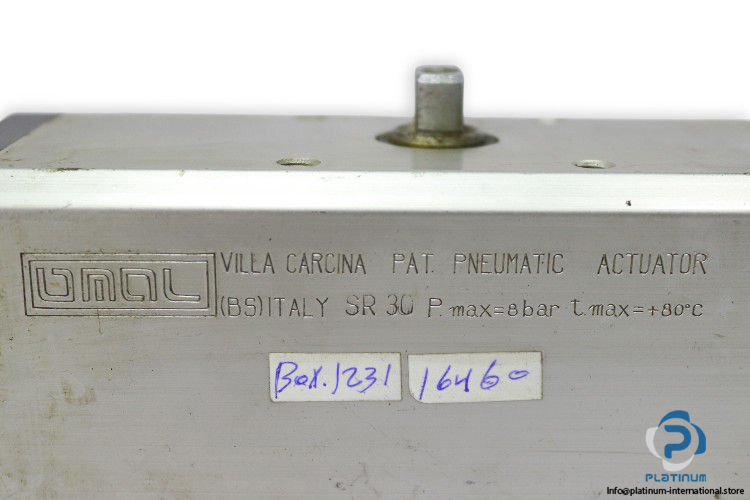

OMAL SR30 Pneumatic Actuator
The OMAL SR30 Pneumatic Actuator provides reliable and efficient valve automation for industrial systems. Designed with a spring return mechanism, it delivers precise torque and controlled rotation for various pneumatic operations.
Manufacturer: OMAL
Type: Pneumatic Actuator
Model: SR30
Series: SR
Size: SR 30
| Operating Media | Compressed filtered air, not necessarily lubricated |
| Actuation Type | Spring Return |
| Pressure Rating | Maximum 8 bar |
| Nominal Pressure | 5.6 bar |
| Temperature Range | -20 to 80 °C |
| Torque Range | 15 Nm to 1920 Nm |
| Rotation Angle | 90° |
| Body Material | Aluminum housing |
