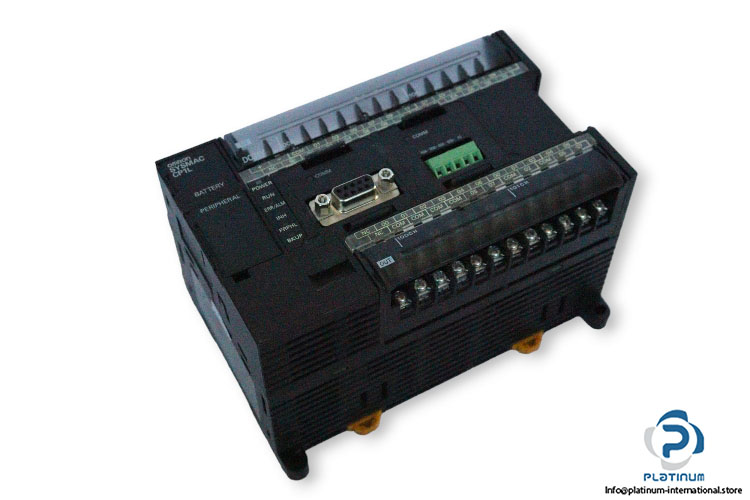

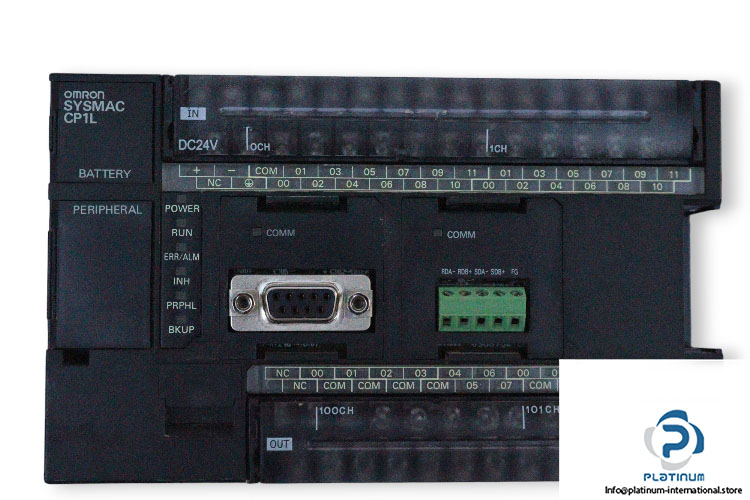

Omron CP1L-M40DT1-D Programmable Controller
Kullanılmış
Stokta1 birimSevkiyata hazır
PROGRAMLANABİLİR KONTROL CİHAZI Omron CP1LM40DT1D, 24 dijital giriş, 16 çıkış, USB bağlantısı ve 10 K adım program kapasitesi sunan 24 V DC programlanabilir kontrol cihazıdır, endüstriyel otomasyon sistemleri için idealdir.
24vAutomationCompactControllerCP1LM40DT1DdcDigitalIndustrialInputModuleOmronOutputPLCPNPprogrammableSystemUSB
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
OMRON CP1LM40DT1D PROGRAMMABLE CONTROLLER
The Omron CP1LM40DT1D Programmable Controller is a compact and high-performance solution for industrial automation applications. It offers excellent control capabilities with advanced digital and analog I/O handling, encoder support, and efficient logic processing.
Manufacturer: Omron
Type: Programmable Controller
Model: CP1LM40DT1D

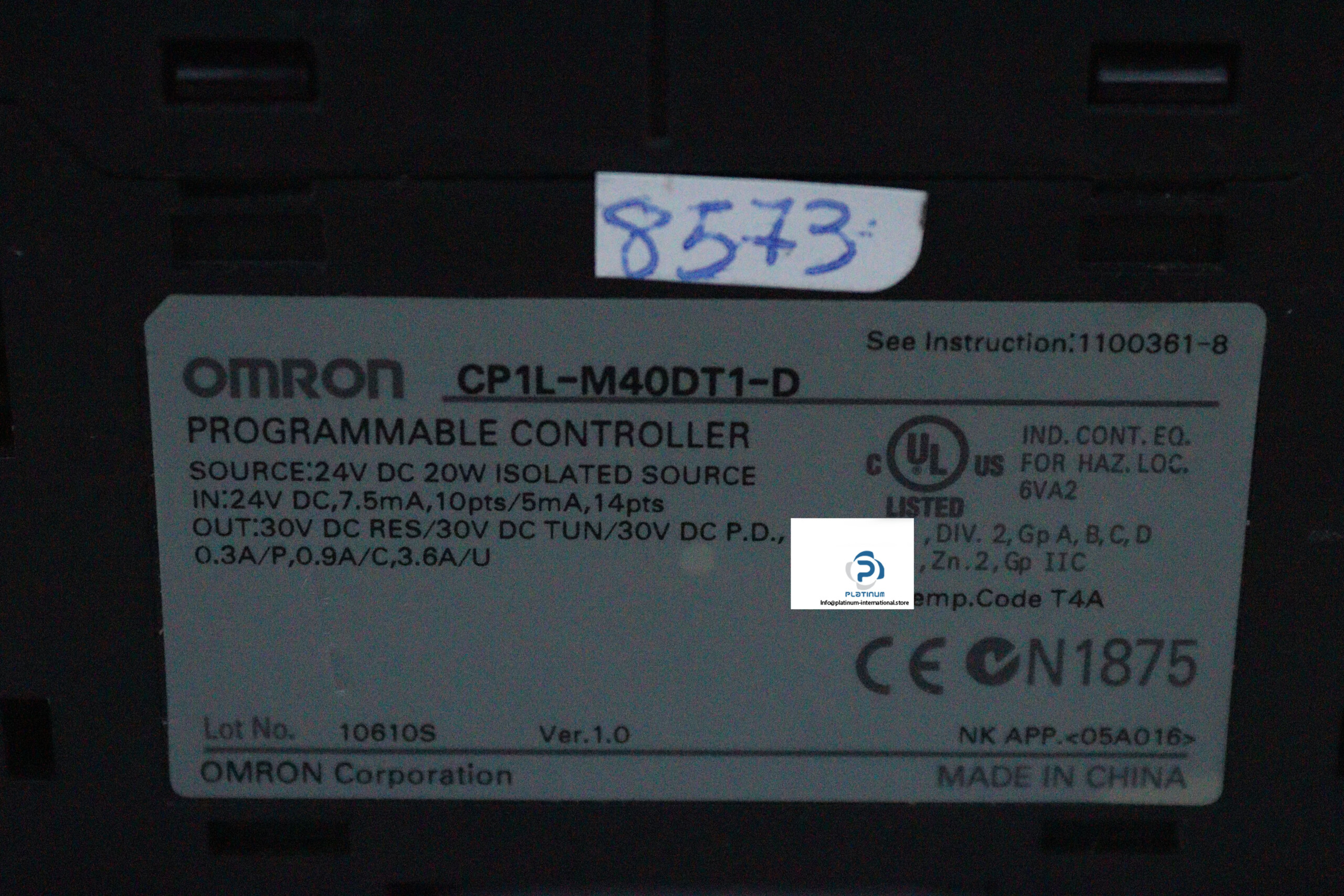

Ref No.: 1100361-8 / 05A016
Version: 1.0
| Supply Voltage | 24 V DC |
| Power | 20 W |
| Input Voltage | 24 V DC, 7.5 mA |
| Output Voltage | 30 V DC |
| Number of Digital Inputs (DI) | 24 |
| Input Type | PNP/NPN |
| Number of Digital Outputs (DO) | 16 |
| Output Type | PNP |
| Program Capacity | 10 K steps |
| Data Memory Capacity | 32 K words |
| Logic Execution Time | 0.55 µs |
| Communication Port(s) | USB |
| Number of USB Ports | 1 |
| Number of Encoder Input Channels | 4 |
| Max. Encoder Input Frequency | 100 kHz |
| Max. Number of Analogue I/O Channels | 25 |
| Max. Number of Local I/O Points | 160 |
| Built-in Auxiliary 24 VDC Output | 0 mA |
| Operating Temperature Range | 0 / 55 °C |
| Dimensions | 90 x 150 x 85 mm |
