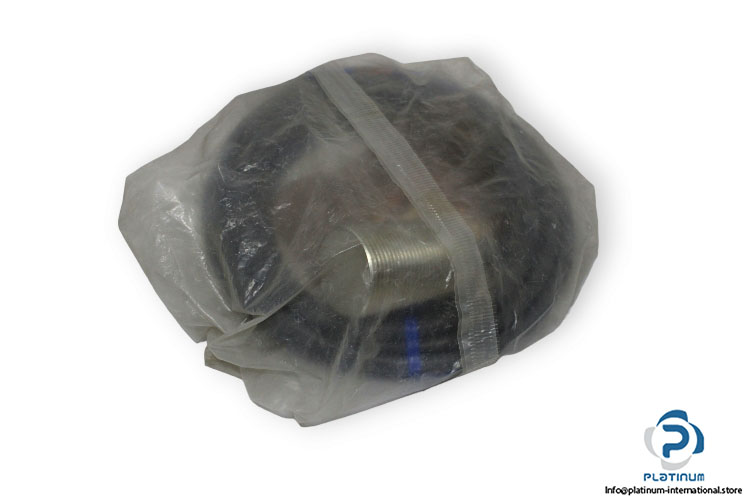

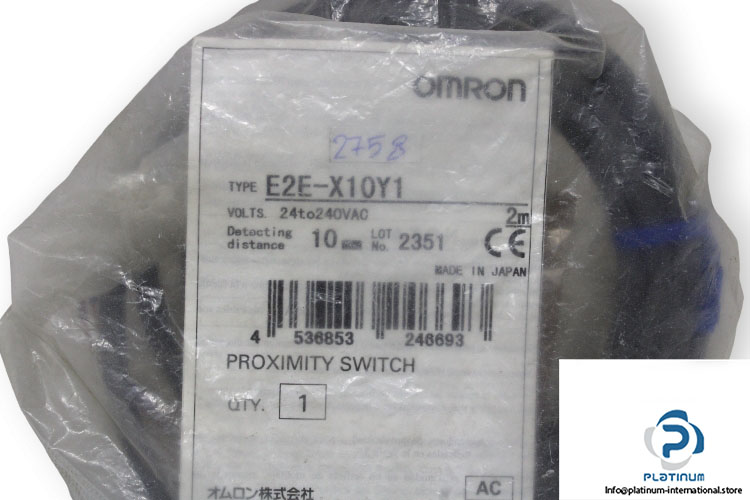

Omron E2E-X10Y1 Proximity Switch Sensor

Manufacturer: Omron
Type: Proximity Switch sensor
Model: E2EX10Y1

Operating Voltage: 24 … 240 V AC
Cable Specifications: PVC (oil-resistant)
Operation mode: Normally Open, Normally Close
Connection method: Pre-wired Models (2 m)
Sensing distance: 10 mm
Operating Current: 100 mA
Set distance: 0 … 8 mm
Response frequency: 25 Hz
Leakage current: 1.7 mA max
Sensing Object: Ferrous Metal
Protection degree: IP67
Ambient Temperature: -40 … 85 °C
Housing Material: Nickel-plated brass
