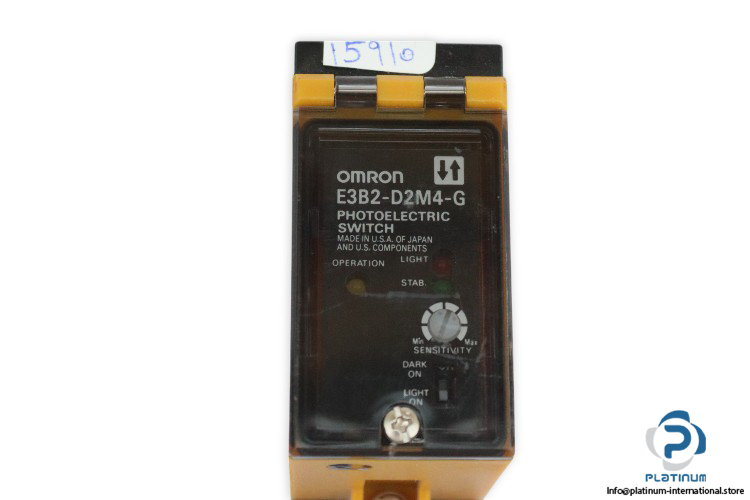

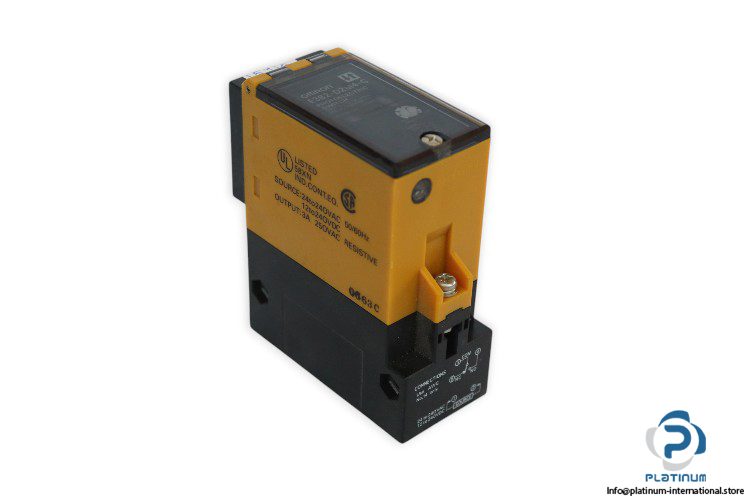

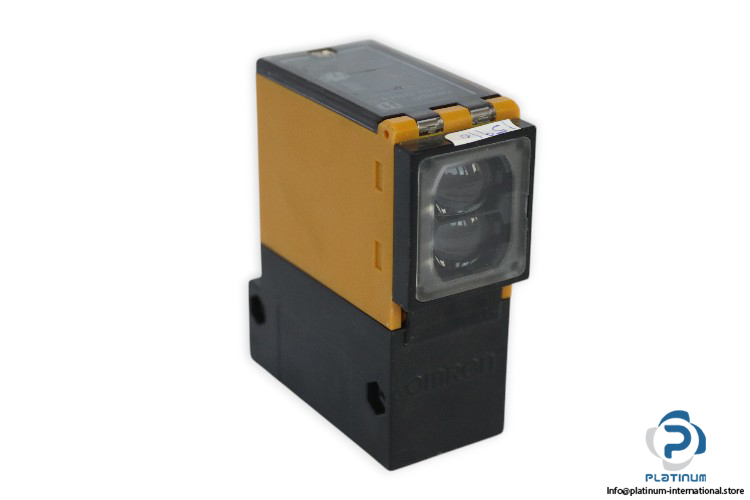

Omron E3B2-D2M4-G Photoelectric Sensor

Manufacturer: OMRON
Type: Photoelectric Sensor
Model: E3B2-D2M4-G

Supply voltage: 24 to 240 VAC/ 12 to 240 VDC
Power consumption:
DC operation 1.5 W max.
AC operation 2 VA max.
Operation mode: Light-ON/Dark-ON, switch selectable

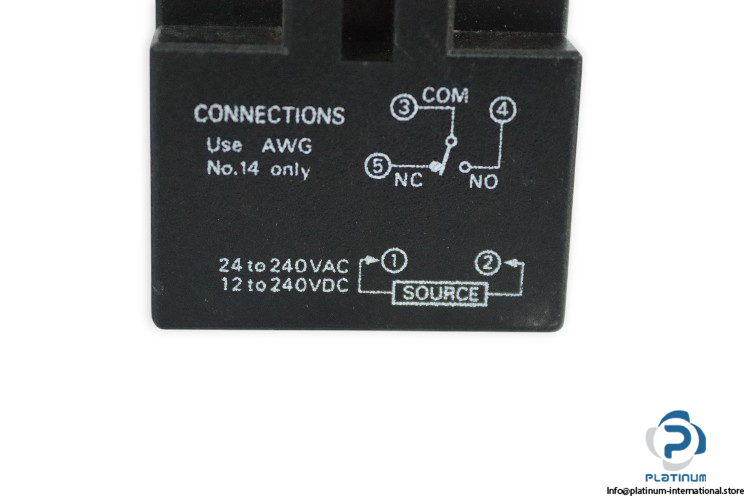

Contact: 1 CO (Changeover)
Control output: Relay, SPDT
Max. load 3 A, 250 VAC, (p.f.=1)
Min. load 10 mA, 5 VDC
Time Range: 0.5 to 20 seconds
Materials: Plastic, polycarbonate
Connections: 1/2-14 NPT
Protection Class: IP66
Operating Temperature: -25° to 55°C
Dimension: 90 x 36 x 80 mm
