Omron E3F-DS10C4 Photoelectric Diffuse Sensor
Yeni
Stokta1 birimSevkiyata hazır
39,99$
FOTOELEKTRİK SENSÖR Omron E3F-DS10C4 difüz fotoelektrik sensör, 100 mm algılama mesafesine sahip, 12–24 V DC besleme, NPN çıkış, NO/NC anahtarlama, IP54–IP67 koruma ve ısıya dayanıklı ABS yüzey.
100ABSCableDiffuseE3F-DS10C4heat-resistantIndustrialIP67mmNo/NcNPNOmronPhotoelectricPVCSensingSensorSwitching
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

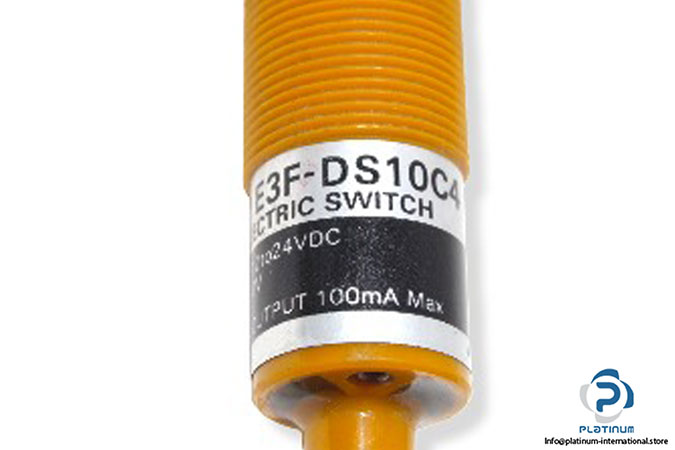

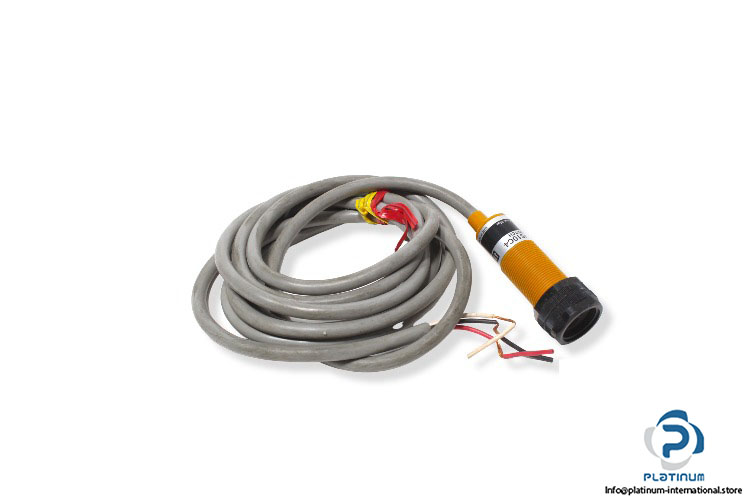

Omron E3F-DS10C4 Photoelectric Diffuse Sensor
The Omron E3F-DS10C4 is a reliable photoelectric diffuse sensor designed for precise object detection in industrial environments. With a compact housing, wide operating voltage, and robust IP54“IP67 enclosure, it delivers stable performance even in challenging conditions.
Manufacturer: Omron
Type: Photoelectric Diffuse Sensor
Model: E3F-DS10C4
| Sensing Range | 100 mm |
| Operating Voltage | 12 / 24 V DC |
| Current Consumption | 8 / 15 mA |
| Electrical Design | NPN |
| Switching Output | Normally Open / Normally Closed |
| Connector Type | PVC Cable, 2 m |
| Enclosure Rating | IP54“IP67 |
| Ambient Operating Temperature | “25 / +65 °C |
| Diameter, Housing Length | 18 mm, 60 mm |
| Housing Material | Plastic |
| Sensing Face Material | Heat-Resistant ABS |
