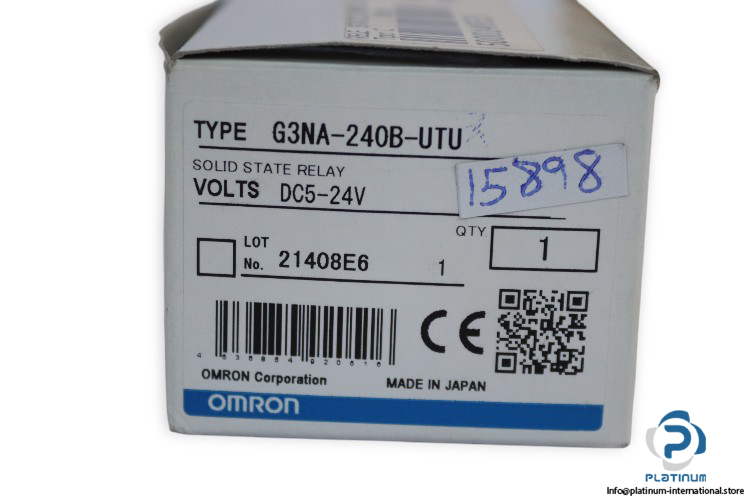

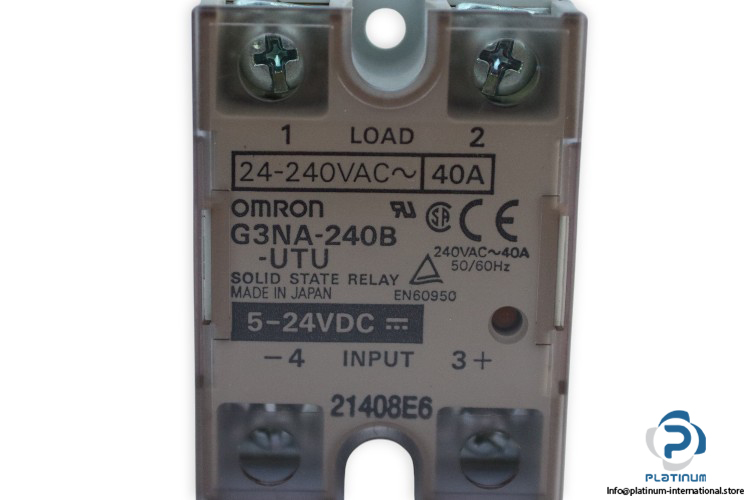

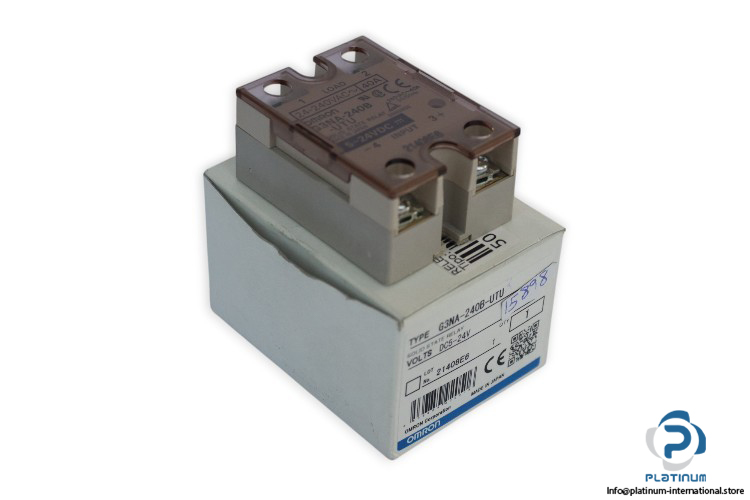

Omron G3NA-240B-UTU Solid-State Relay
Manufacturer: OMRON
Type: Solid-state Relay
Model: G3NA-240B-UTU
21408E6
Number of phases: 1
Application: ON/OFF control
Input
Rated voltage: 5 to 24 VDC
Output
Rated load voltage: 24 to 240 VAC
Rated operation current Ie at AC-1: 40 A
Must operate voltage max.: 4 V
Must release voltage min.: 1 V
Ambient temperature range Operating: -30 … 80 „ƒ
Dimensions: 58 x 43 x 27 mm
