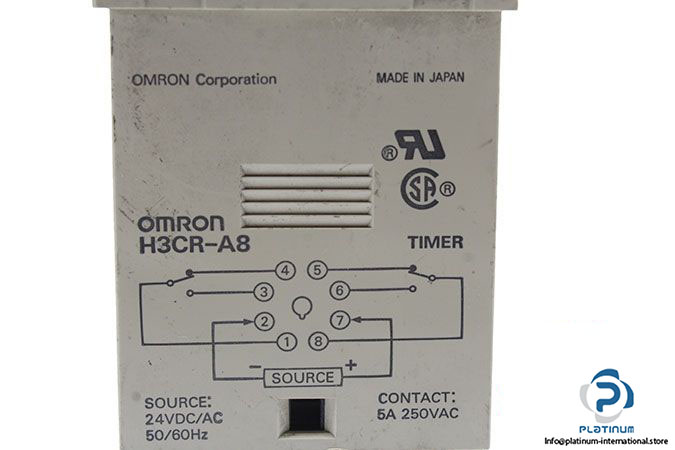

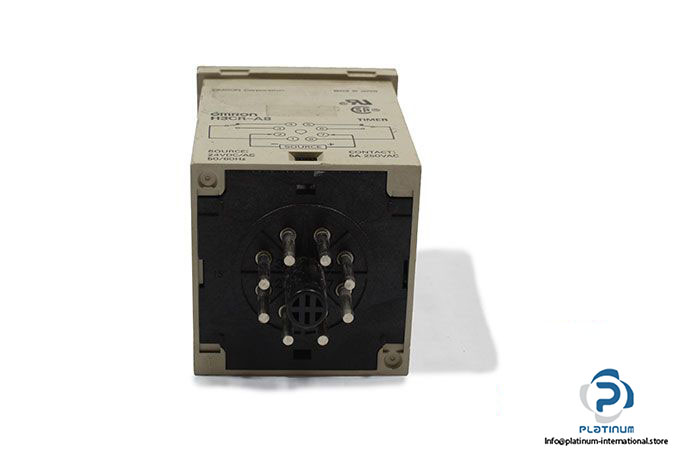

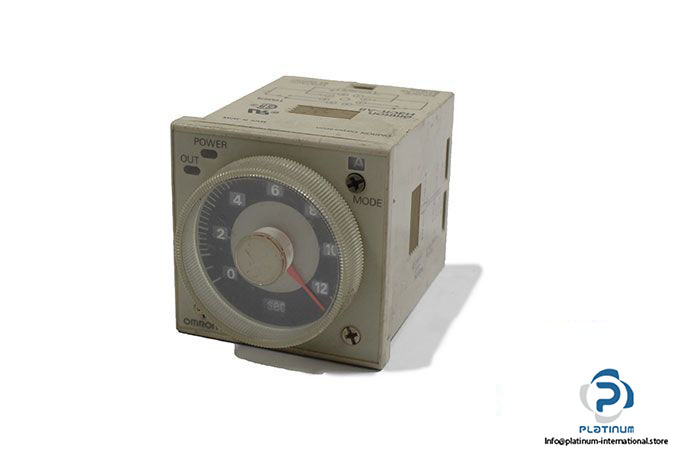

Omron H3CR-A8 Solid-State Multi-Functional Timer

Manufacturer: OMRON

Type: Solid-State Multi-Functional Timer

Model: H3CR-A8

Rated Supply Voltage: 24 VDC/AC

Frequency: 50/60 Hz

Timer Range: 0 … 12 s

Power Reset: Minimum power-opening time: 0.1 s

Power Consumption: 24 … 48 VAC/VDC Relay ON/OFF: approx. 0.9 W

Control Outputs:

• 5A at 250 VAC/30 VDC, 0.15A at 125 VDC, resistive load (cosφ = 1)
• Minimum applied load: 10mA at 5 VDC (failure level: P reference value)
• Contact materials: AgSnIn

Ambient Temperature Operating: −10 … 55°C

Case Color: Light gray

Dimensions: 48 X 48 X 81 mm

Degree of Protection: IP40

Accessories: Track Mounting/Front Connecting Socket

Weight: 0.12 kg
