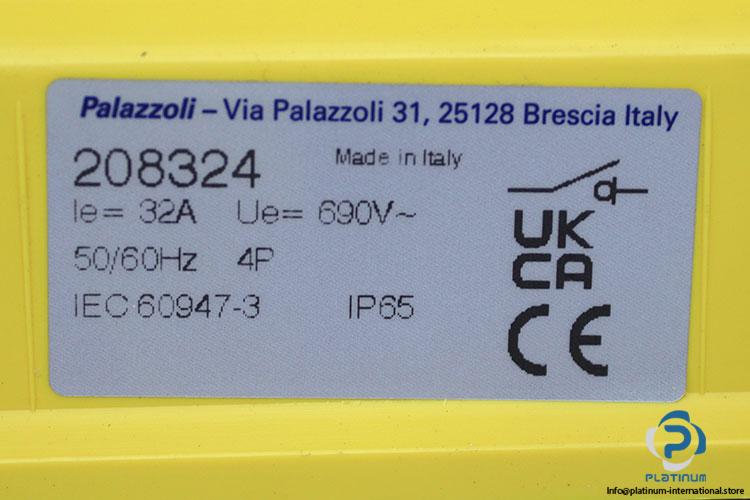

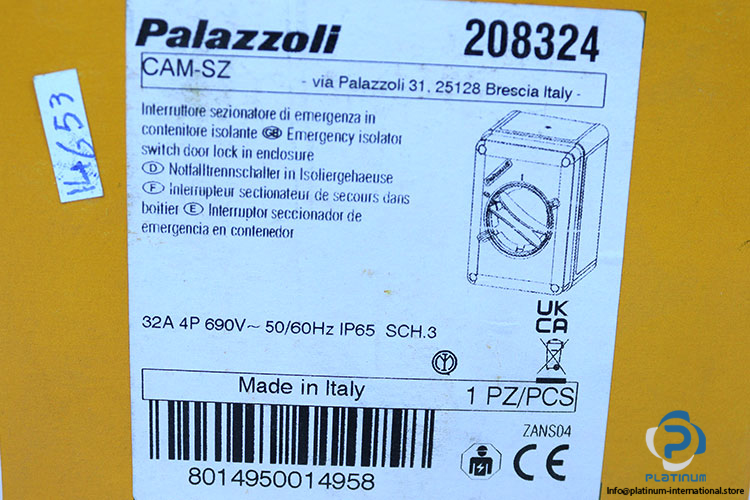

Palazzoli 208324 Isolator Switch

Manufacturer: PALAZZOLI
Type: Isolator Switch
Model: 208324

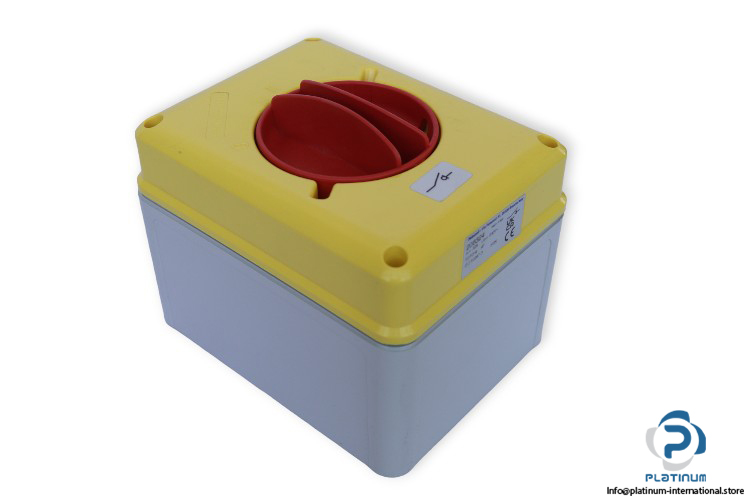

Description: CAM-SZ Isolator Switch for Emergency with Red Handle and Yellow Cover, in Insulating Material
Rated Operating Voltage: 690 V AC
Rated Current: 32 A
Frequency: 50 … 60 Hz
Rated Insulation Voltage: 690 V
CAM Layout: 3
Poles No.: 4-Pole
Material: Technopolymer Recyclable Palazzoli
Protection Class: IP65
Ambient Temperature: -25 … 60 °C
Lockable Handle: 2 Locks Ø 5 mm
Dimensions: 158 x 121 x 126 mm
