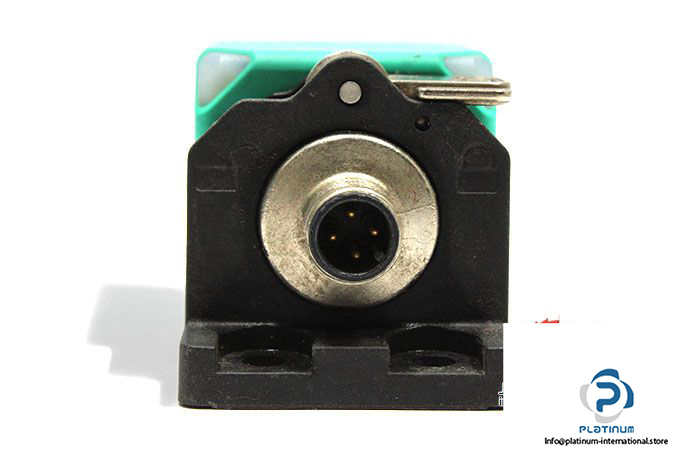

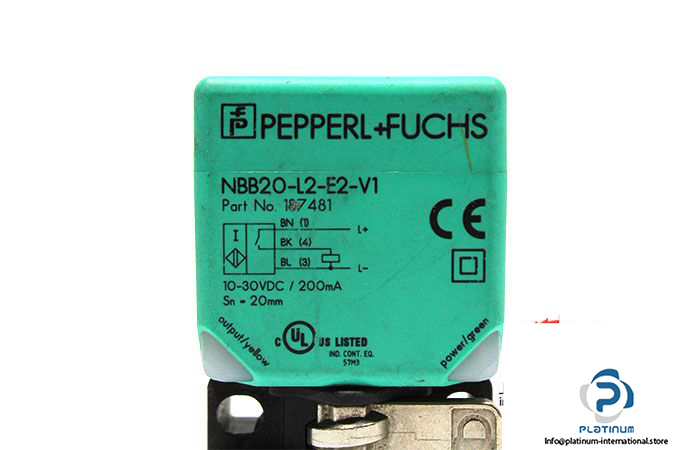

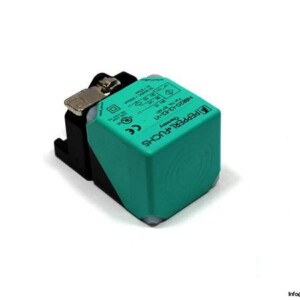

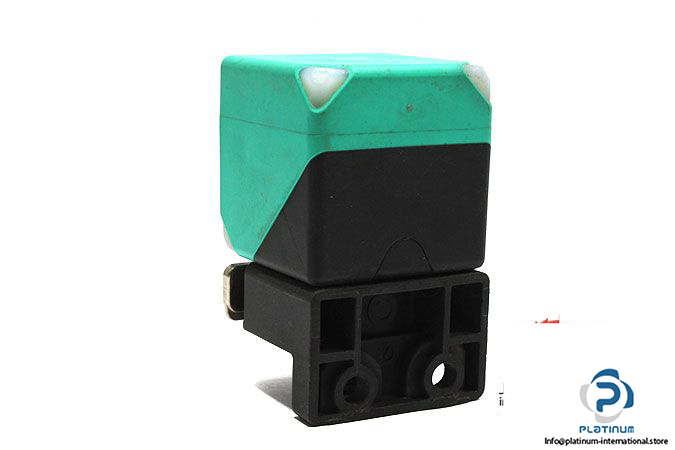

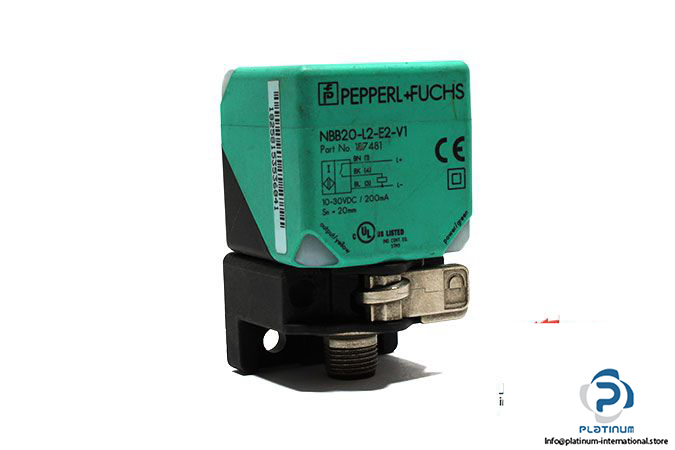

Pepperl Fuchs NBB20-L2-E2-V1 Inductive Sensor

Manufacturer: PEPPERL+FUCHS

Series: VariKont L

Type: INDUCTIVE SENSOR

Model: NBB20L2E2V1

Part No.: 187481

Alternative Part No.: 43288S

Rated Operating Distance: 20 mm

Assured Operating Distance: 0 … 16.2 mm

Actual Operating Distance: 18 … 22 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 0 … 200 mA

Switching Frequency: 0 … 440 Hz

Electrical Design: PNP

Switching Output: Normally Open

Connector Type: M12 Connector, 4-Pin

Protection Class: II

Degree of Protection: IP69K

Ambient Operating Temperature: -25 … 85°C

Dimensions: 40 x 40 x 55 mm

Housing Material: PA

Sensing Face Material: PA

Mounting: Flush-Mountable

Weight: 0.13 kg
