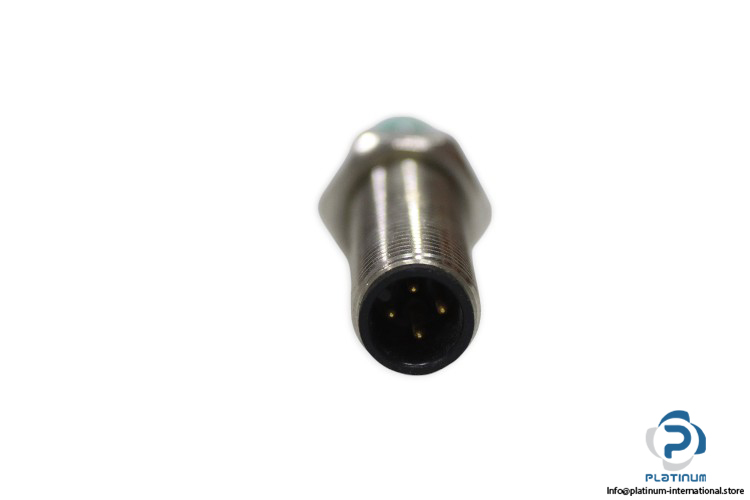

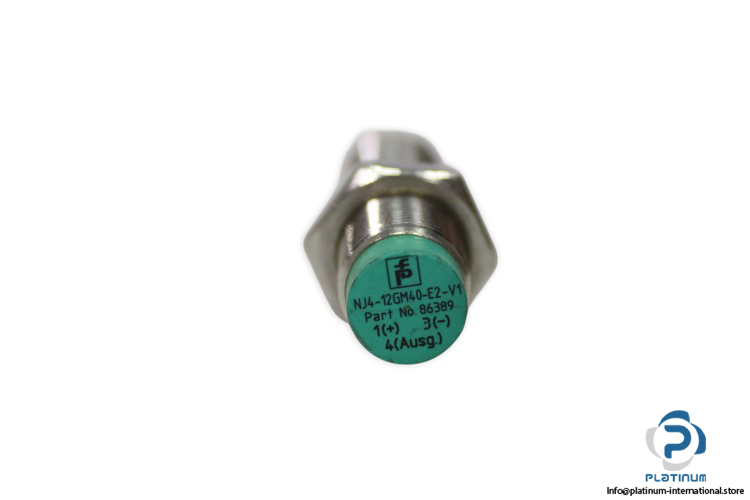

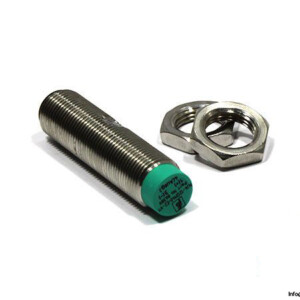

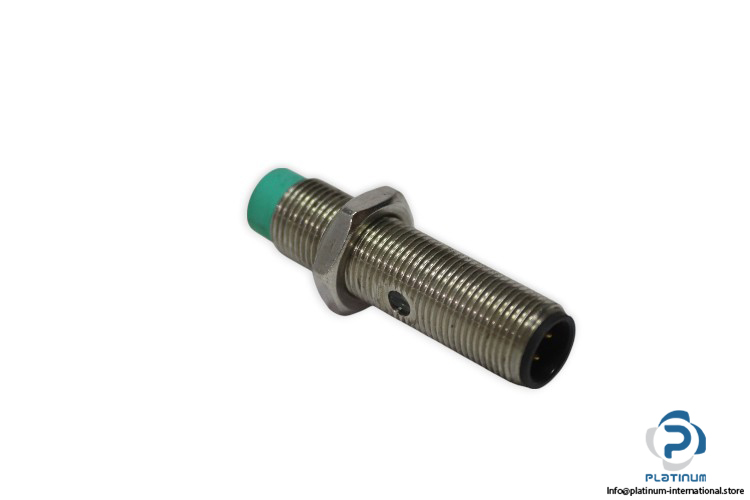

Pepperl Fuchs NJ4-12GM40-E2-V1 Inductive Sensor
Kullanılmış
Talep üzerine mevcut
PEPPERL+FUCHS NJ4-12GM40-E2-V1 inductive sensor with 4 mm sensing distance, PNP output, and IP67 protection. Ideal for reliable metal detection in industrial automation.
86389AutomationConnectorFuchsInductiveIndustrialIP67M12MountingNJ4-12GM40-E2-V1Non-flushOutputPepperlPNPSensorstainlessSteel
Yeni
Talep üzerine mevcut
Bu ürün ayrıca yeni olarak da mevcuttur
Yeni Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ4-12GM40-E2-V1
Part No.: 86389
The PEPPERL+FUCHS NJ4-12GM40-E2-V1 inductive sensor offers reliable, non-contact detection of metal objects. With a rated operating distance of 4 mm and PNP normally open output, it is designed for high-speed automation environments. Engineered with a stainless steel housing and PBT sensing face, this sensor ensures robust performance in industrial applications.
- Rated Operating Distance: 4 mm
- Assured Operating Distance: 0 / 3.24 mm
- Operating Voltage: 10 / 60 V DC
- Switching Current: 0 / 200 mA
- No-Load Supply Current I0: ‰¤ 9 mA
- Voltage Drop Ud: ‰¤ 3 V
- Signal Output: PNP
- Switching Function: Normally Open
- Switching Frequency: 0 / 2000 Hz
- Installation: Non-Flush
- Protection Degree: IP67
- Ambient Temperature: -25 / 70 °C
- Material: Housing: Stainless Steel, Sensing Face: PBT
- Connection: Connector M12 x 1, 4-pin
- Dimensions: Diameter 12 mm, Length 50 mm
