Pepperl+Fuchs NBB0,8-5GM25-E2 Inductive Sensor
Yeni
Stokta2 ünitelerSevkiyata hazır

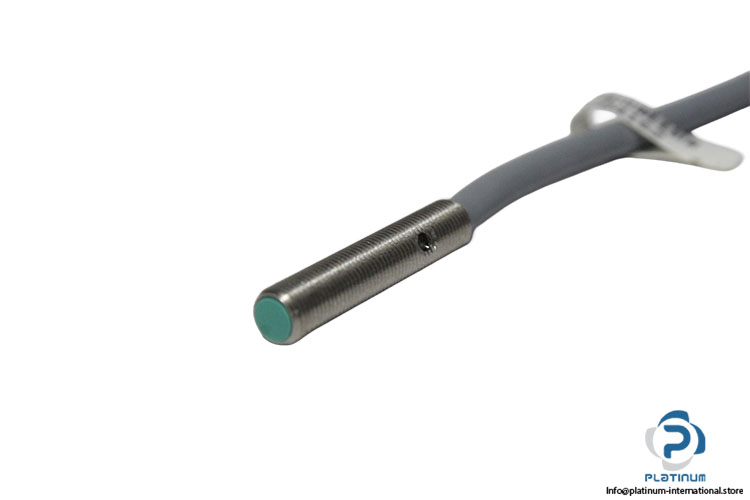

Inductive Sensor The PEPPERL+FUCHS NBB0,8-5GM25-E2 is a compact PNP inductive sensor with 0.8 mm sensing distance, 10–30 V DC operation, and IP67 protection for industrial automation applications.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
| Part No. | 053491 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance sn | 0.8 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance sa | 0 ... 0.648 mm |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.4 |
| Reduction factor r304 | 0.77 |
| Operating voltage UB | 10 ... 30 V |
| Switching frequency f | 0 ... 3000 Hz |
| Hysteresis H typ. | 5% |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop Ud | 3 V |
| Operating current IL | 0 ... 200 mA |
| Off-state current Ir | 0 ... 0.1 mA typ. 0.1 µA at 25 °C |
| No-load supply current I0 | 10 mA |
| Switching state indicator | LED, yellow |
| MTTFd | 1400 a |
| Mission Time (TM) | 20 a |
| Ambient temperature | -25 ... 70 °C |
| Standards | EN IEC 60947-5-2 |

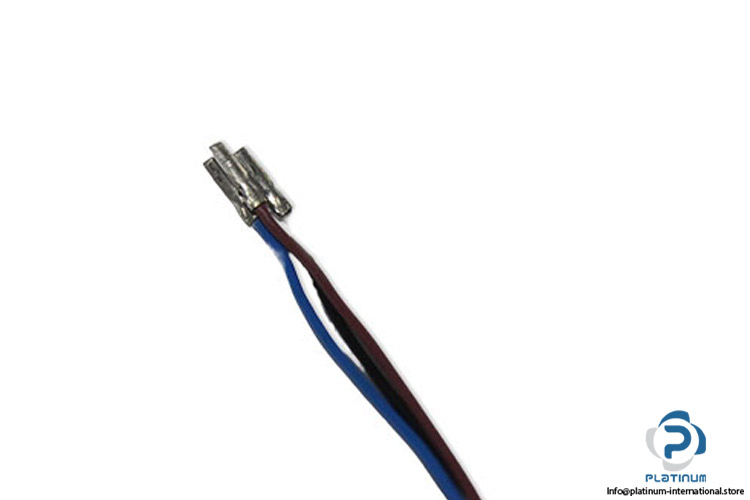

| Connection type | cable,3-wires |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PC |
| Degree of protection | IP67 |
| Cable diameter | 3.5 mm ± 0.2 mm |
| Bending radius | 10 x cable diameter |
| Material | PVC |
| Color | grey |
| Number of cores | 3 |
| Core cross section | 0.14 mm2 |
| Length L | 2 m |
| Length | 25 mm |
| Diameter | 5 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100974 |
| Weight | 0,04 |
